Lever Operated Limit Switch
Operates the control change-over the contacts of a motor of a moving equipment when a cam moving with loads actuates the lever / (or the weight rests on a surface) of the Limit Switch. This turns the cam on a square shaft and operates the NO / NC change over the contact elements.

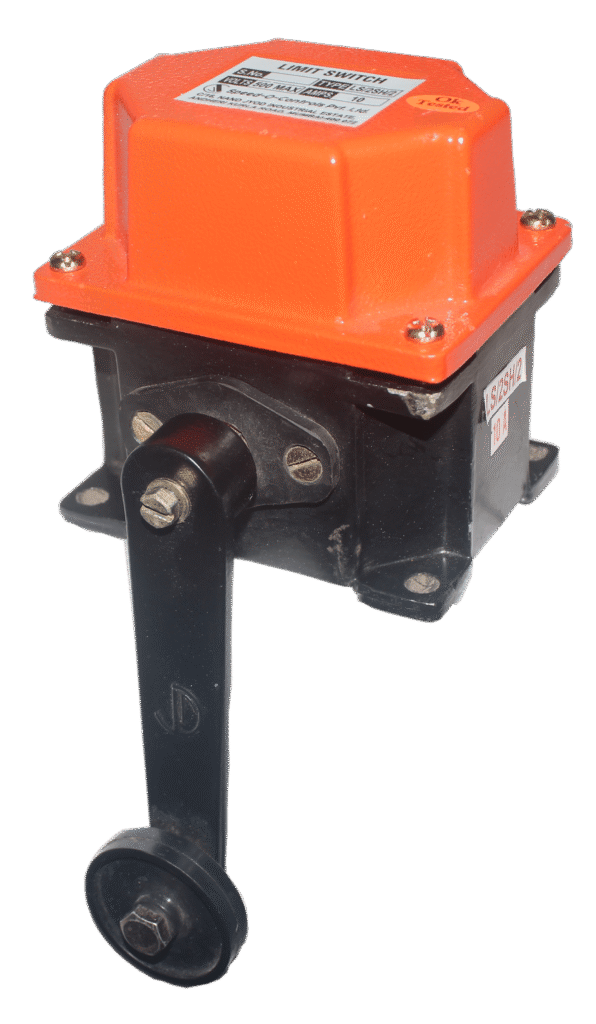

10A Model LS - AL
The LS-AL 10A Lever Operated Limit Switch is a heavy-duty, precision control device engineered for EOT cranes, hoists, and industrial automation systems. Built with a rugged cast aluminum housing, it delivers high durability and long service life even in harsh environments. Its spring-loaded lever mechanism ensures accurate position sensing and reliable switching, while the 10A current rating supports moderate inductive loads. Ideal for travel limits, motion control, and safety interlocking applications, this limit switch enhances operational reliability and machine safety.

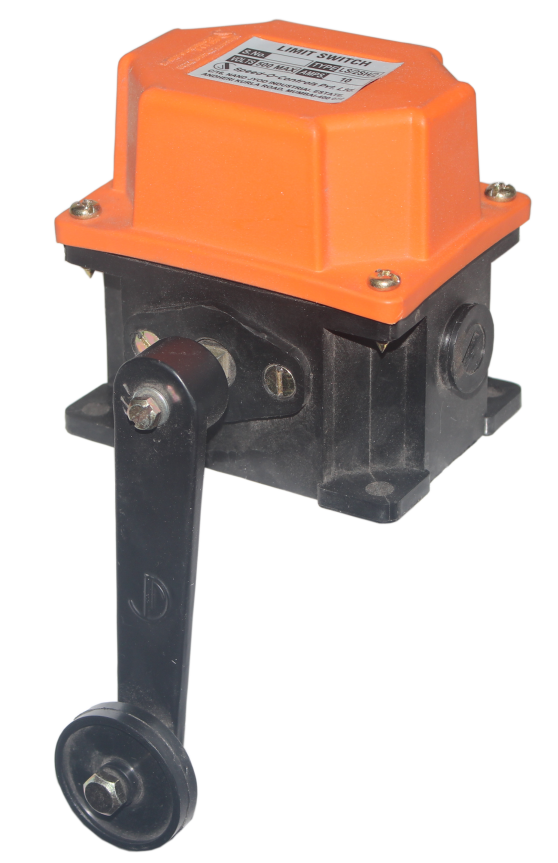

10A Model LS - TP
The LS-TP 10A Lever Operated Limit Switch is engineered for robust industrial use, ideal for cranes, hoists, and automation systems. Its heavy-duty construction ensures durability in tough environments, and the precision lever mechanism offers reliable position sensing and switching accuracy. With a 10A rating, it handles moderate inductive loads effectively. Perfect for end-of-travel limits, motion control, and safety interlocks, this switch safeguards machinery and enhances operational reliability.
40A Model LS AL
The 40A Lever Limit Switch is a heavy-duty lever-operated limit switch designed for high-current industrial applications. It features:
- Current Rating: 40 Amps
- Voltage Rating: 500 VAC
- Contact Configuration: Double-break silver cadmium
- Housing: Durable cast aluminum
- Ingress Protection: IP-55
- Mounting: Side-mounted with adjustable lever
- Cable Entries: 2 x 3/4″ conduit
This switch is ideal for applications requiring robust and reliable position sensing, such as EOT cranes, hoists, and material handling systems.
40A Model LS TPL
The is a heavy-duty 40A lever-operated limit switch designed for industrial applications requiring robust and reliable position sensing. It features:
- Current Rating: 40 Amps
- Voltage Rating: 500 VAC
- Contact Configuration: Double-break silver cadmium
- Housing: Durable thermoplastic
- Ingress Protection: IP-55
- Mounting: Side-mounted with adjustable lever
- Cable Entries: 2 x 3/4″ conduit
This switch is ideal for applications requiring robust and reliable position sensing, such as EOT cranes, hoists, and material handling systems.

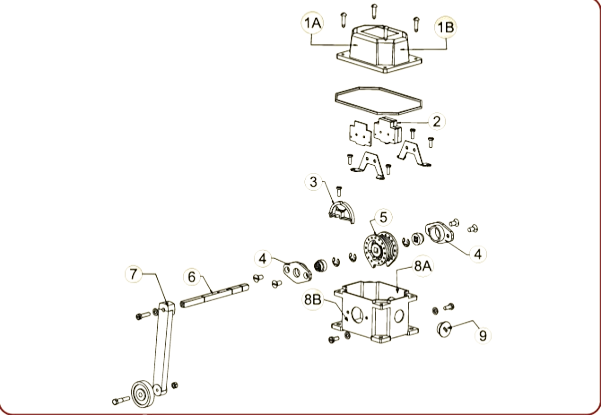

Spares for LLS 10 Amps
The LSR is a 4 way switch designed for industrial applications requiring precise position control. It features:
- Operation: Activates control change-over contacts when the moving equipment, operating with a load, actuates the 300mm radius of the limit switch.
- Contact Configuration: NO/NC change-over contacts.
- Housing: Durable construction suitable for industrial environments.
- Mounting: Designed for easy integration with moving equipment.
This switch is ideal for applications requiring reliable position sensing and control, such as cranes, hoists, and conveyors.
Spares for LLS 40 AmpsL
The ST-13200 electro-hydraulic thruster delivers a robust 132 kg (1294 N) linear thrust with a stroke length of 254 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 400W power consumption and requires 10 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
10A Model LS - AL
The LS-AL 10A Lever Operated Limit Switch is a heavy-duty, precision control device engineered for EOT cranes, hoists, and industrial automation systems. Built with a rugged cast aluminum housing, it delivers high durability and long service life even in harsh environments. Its spring-loaded lever mechanism ensures accurate position sensing and reliable switching, while the 10A current rating supports moderate inductive loads. Ideal for travel limits, motion control, and safety interlocking applications, this limit switch enhances operational reliability and machine safety.
10A Model LS - TP
The LS-TP 10A Lever Operated Limit Switch is engineered for robust industrial use, ideal for cranes, hoists, and automation systems. Its heavy-duty construction ensures durability in tough environments, and the precision lever mechanism offers reliable position sensing and switching accuracy. With a 10A rating, it handles moderate inductive loads effectively. Perfect for end-of-travel limits, motion control, and safety interlocks, this switch safeguards machinery and enhances operational reliability.
40A Model LS AL
The 40A Lever Limit Switch is a heavy-duty lever-operated limit switch designed for high-current industrial applications. It features:
- Current Rating: 40 Amps
- Voltage Rating: 500 VAC
- Contact Configuration: Double-break silver cadmium
- Housing: Durable cast aluminum
- Ingress Protection: IP-55
- Mounting: Side-mounted with adjustable lever
- Cable Entries: 2 x 3/4″ conduit
This switch is ideal for applications requiring robust and reliable position sensing, such as EOT cranes, hoists, and material handling systems.
40A Model LS TPL
The is a heavy-duty 40A lever-operated limit switch designed for industrial applications requiring robust and reliable position sensing. It features:
- Current Rating: 40 Amps
- Voltage Rating: 500 VAC
- Contact Configuration: Double-break silver cadmium
- Housing: Durable thermoplastic
- Ingress Protection: IP-55
- Mounting: Side-mounted with adjustable lever
- Cable Entries: 2 x 3/4″ conduit
This switch is ideal for applications requiring robust and reliable position sensing, such as EOT cranes, hoists, and material handling systems.
Spares for LLS 10 Amps
The LSR is a 4 way switch designed for industrial applications requiring precise position control. It features:
- Operation: Activates control change-over contacts when the moving equipment, operating with a load, actuates the 300mm radius of the limit switch.
- Contact Configuration: NO/NC change-over contacts.
- Housing: Durable construction suitable for industrial environments.
- Mounting: Designed for easy integration with moving equipment.
This switch is ideal for applications requiring reliable position sensing and control, such as cranes, hoists, and conveyors.
Spares for LLS 40 AmpsL
The ST-13200 electro-hydraulic thruster delivers a robust 132 kg (1294 N) linear thrust with a stroke length of 254 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 400W power consumption and requires 10 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
