SMD Brake
SMD-160-23/05
The ST-520-18-1 is a high-performance electro-hydraulic thruster designed for industrial shoe brakes. It delivers a thrust force of 180 kgf with a stroke length of 50 mm, ensuring fast and smooth braking action. Operating on 415V AC, 3-phase power, it provides reliable performance for continuous duty applications. Its compact design, robust construction, and maintenance-free sealed oil system make it ideal for EOT cranes, conveyors, and heavy material handling systems. Engineered for durability, it ensures consistent braking even in harsh industrial environments.
SMD-200-23/05
The ST-535-34 electro-hydraulic thruster delivers a robust 34 kg (333 N) linear thrust with a 51 mm stroke, powered by a 150W, 415V AC, 3-phase supply. Designed for EOT cranes, gantry cranes, overhead cranes, and hoists, it features a cast iron body and operates efficiently with 3 liters of transformer oil. With an IP-55 ingress protection and a maximum ambient temperature of 50°C, this thruster ensures reliable performance in demanding industrial environments.
SMD-200-30/05
The ST-545-46 electro-hydraulic thruster delivers a robust 46 kg (451 N) linear thrust with a stroke length of 76 mm, powered by a 400/440V AC, 50Hz, 3-phase supply. Designed for demanding applications, it features a cast iron body and operates efficiently with 3 liters of transformer oil. With an IP-55 ingress protection and a maximum ambient temperature of 50°C, this thruster ensures reliable performance in harsh industrial environments. It is widely used in EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-250-23/05
The ST-870-68 electro-hydraulic thruster delivers a robust 68 kg (667 N) linear thrust with a stroke length of 76 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 200W power consumption and requires 5 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-250-30/05
The ST-8110 electro-hydraulic thruster delivers a robust 114 kg (1118 N) linear thrust with a 76 mm stroke, powered by a 415V AC, 3-phase supply. It operates efficiently with a 250W power consumption and requires 4.5 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-250-50/06
The ST-13200 electro-hydraulic thruster delivers a robust 132 kg (1294 N) linear thrust with a stroke length of 254 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 400W power consumption and requires 10 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-300-23/05
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-300-50/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-300-80/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-315-23/05
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-315-30/05
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-315-50/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-315-80/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-400-05/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-400-80/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-400-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-500-80/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.

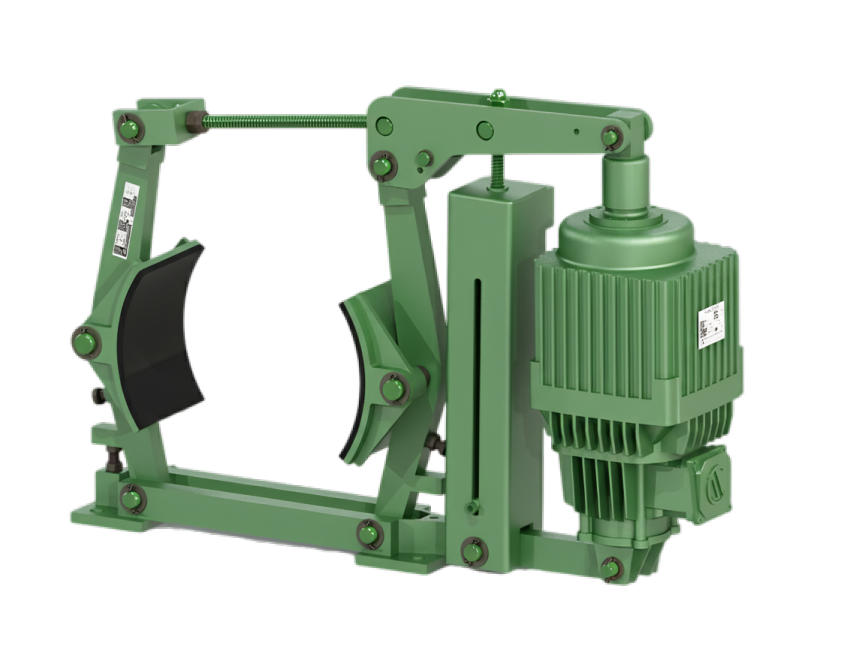

SMD-500-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.

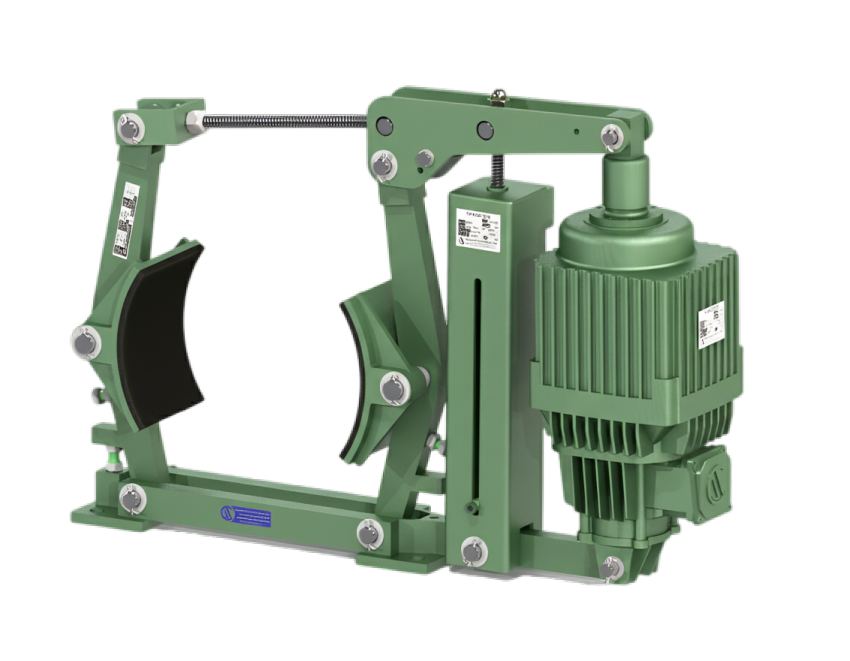

SMD-500-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-600-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-600-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-600-301/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-630-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-630-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-630-301/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-710-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-710-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-710-310/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.

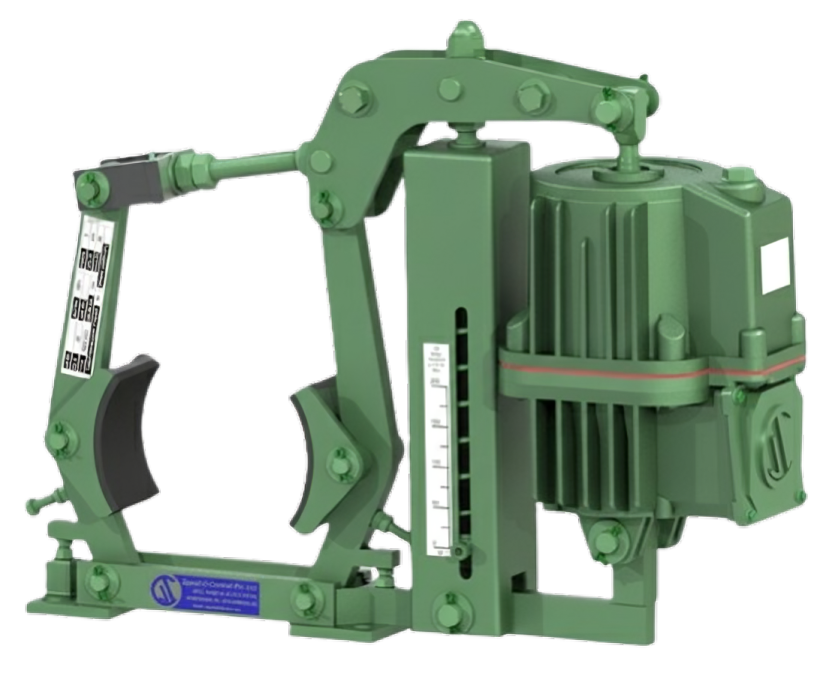

SMD-160-23/05
SMD-160-23/05 is a high-performance, fail-safe braking unit designed to accurately retard and stop moving machinery. It is equipped with an ELDY Thruster, a reliable, compact electro-hydraulic unit that provides smooth, jerk-free linear motion with low power input.
Features
- Type: Electro-Hydraulic Thruster Drum Brake
- Application: EOT Cranes, Lifts, and heavy engineering machinery.
- Braking Mechanism: Fail-safe design, applying force via a pre-stressed compression spring.
- Drum Diameter: 160 mm.
- Braking Torque: 30 – 200 Nm.
- Protection: IP-65 ingress protection (suitable for outdoor installation).

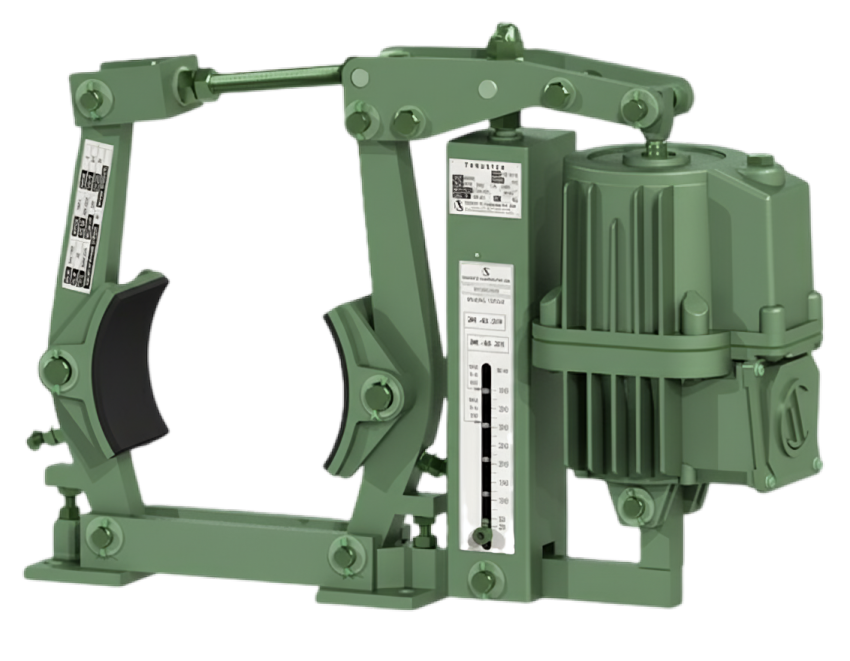

SMD-200-23/05
The SMD-200-23/5 is a robust electro-hydraulic thruster drum brake designed for reliable performance in heavy-duty industrial environments, like steel mills, cement plants, and for EOT/overhead crane applications. It is constructed with a rugged, steel-fabricated frame and features a fail-safe design, ensuring the brake is applied automatically in the event of a power failure.
Features:
- Brake Type: Electro-Hydraulic Thruster Drum Brake (Spring Applied, Thruster Released)
- Drum Diameter: 200 mm
- Braking Torque Range: 39 – 300 Nm
- Thruster Capacity: 23 kg
- Protection: Rated for IP-65 ingress protection, making it suitable for outdoor installation and resistance to dust and water jets.

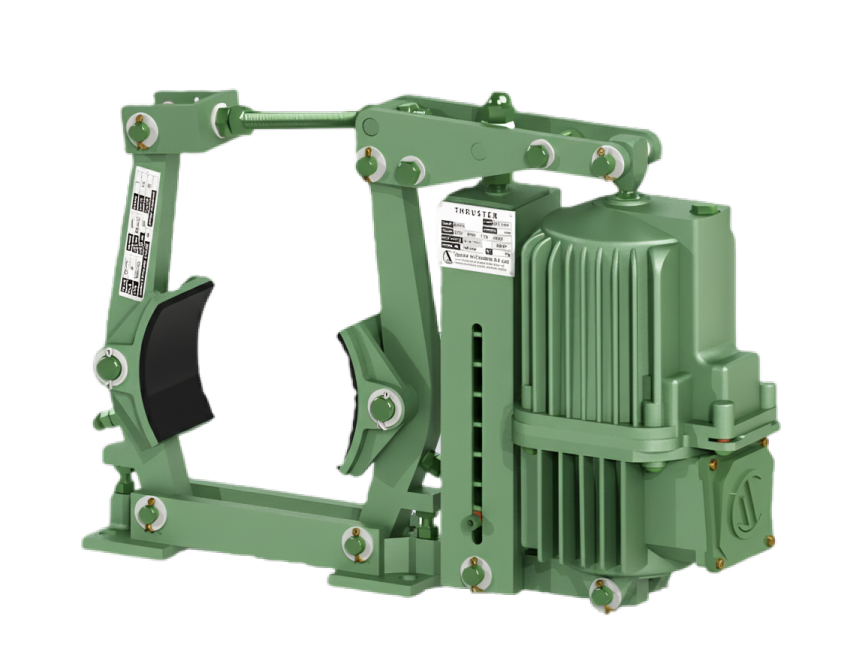

SMD-200-30/05
The SMD-200-30/5 is a heavy-duty, electro-hydraulic thruster drum
brake from Speed-O-Controls, engineered for reliable, fail-safe operation in demanding industrial applications.
Key Features and Specifications:
- Brake Type: Electro-Hydraulic Thruster Drum Brake (Spring-applied/Power-released).
- Thruster Model: ELD-30/05, providing thrust of 30 Kg.
- Drum Diameter: 200 mm
- Braking Torque Range: 39 – 400 Nm
- Construction: Robust, steel-fabricated frame with an asbestos-free liner for durability and compliance.
- Protection: Rated IP-65.
SMD-250-23/05
The SMD-250-23/5 is an electro-hydraulic thruster drum brake, known for its robust construction and reliability in industrial environments. Engineered for fail-safe operation (spring-applied/power-released), it adheres to DIN standards and is ideal for critical braking requirements in heavy-duty machinery.
Key Features and Specifications:
·
Brake Type: Electro-Hydraulic Thruster
Drum Brake
·
Thruster Model: ELD-23/05, providing a
thrust of 23 Kg.
·
Drum Diameter: 250 mm
·
Braking Torque Range: 50 – 320 Nm
(adjustable)
·
Construction: Steel-fabricated frame with
asbestos-free brake liners.
·
Protection: Rated IP-65 (Ingress
Protection), ensuring resistance to dust and water jets.

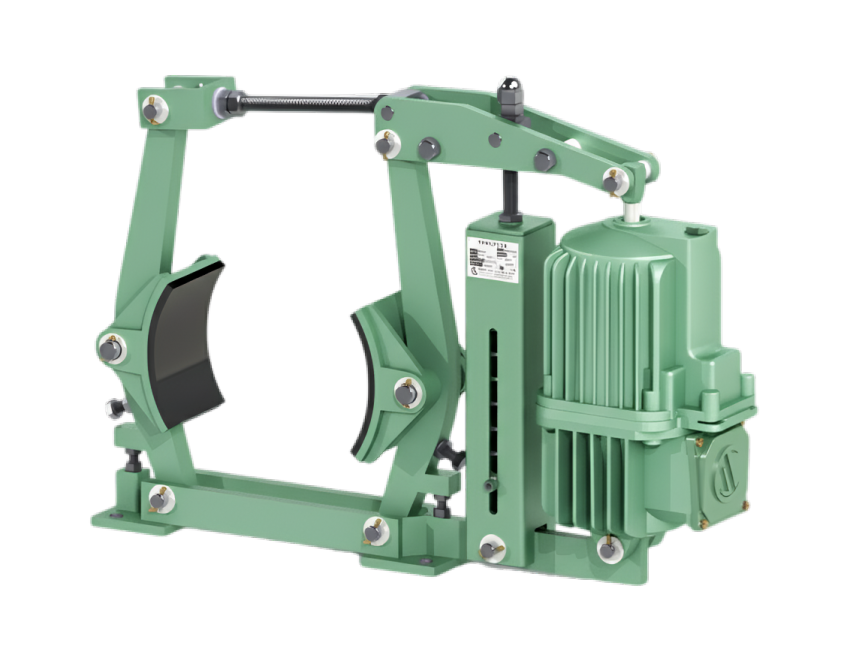

SMD-250-30/05
The SMD-250-30/5 is a high-performance electro-hydraulic thruster drum brake designed and manufactured by Speed-O-Controls. It belongs to the robust SMD series of fail-safe brakes, which are widely used for heavy-duty industrial applications such as EOT cranes, hoists, steel mills, and conveyor systems where reliable braking is essential.
Key Technical Highlights:
·
Brake Type: Electro-Hydraulic Thruster
Drum Brake (Spring-applied, Electro-Hydraulic released).
·
Thruster Model: ELD-30/05, delivering a
thrust of 30 Kg.
·
Drum Diameter: 250 mm.
·
Braking Torque: Adjustable from 50 Nm up
to a maximum of 420 Nm.
·
Supply: 415 V ± 10%, 50 Hz, 3-Phase AC.
·
Protection: Features an IP-65
ingress protection rating for reliable performance in harsh, dusty, or wet
environments.
·
Construction: Built with steel-fabricated
frames, asbestos-free brake liners, and designed according to DIN standards for
durability and ease of maintenance.

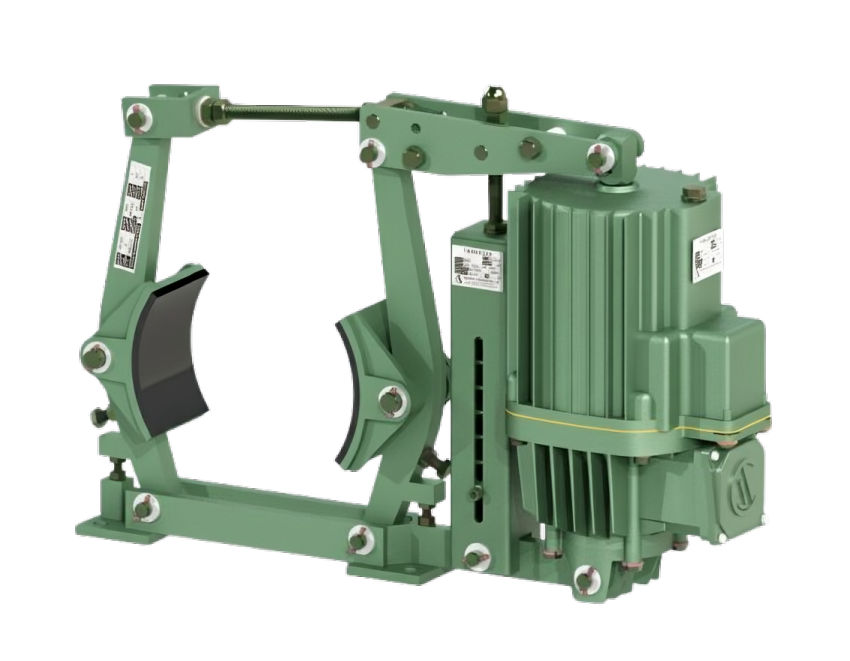

SMD-250-50/06
The SMD-250-50/6 is a heavy-duty, electro-hydraulic thruster drum. As a fail-safe device, this brake
automatically applies clamping force to the drum when power is cut or lost,
ensuring machinery stops safely and accurately.
Key Technical Highlights:
·
Brake Type: Electro-Hydraulic Thruster
Drum Brake (Spring-applied, Electro-Hydraulic released).
·
Drum Diameter: 250 mm.
·
Thrust Capacity: High thrust capacity
(approx. 50 Kg) for quick and reliable release.
·
Braking Torque: Designed to achieve high
braking torque, typically in the range of up to 850 Nm (Newton-meters).
·
Application: Ideal for critical holding
and service braking applications on industrial equipment like EOT cranes,
hoists, conveyors, and material handling systems requiring a high stopping
force.

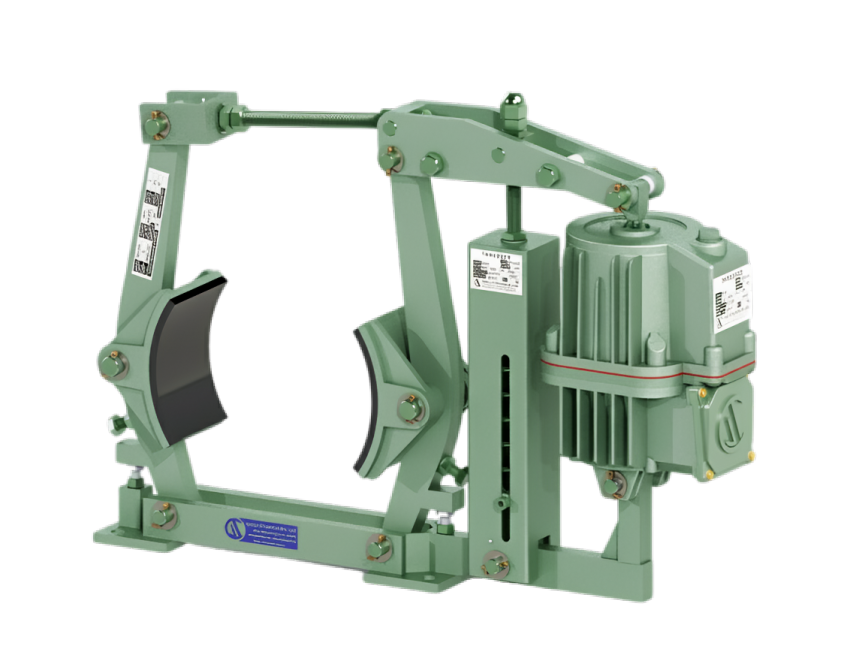

SMD-300-23/05
The SMD-300-23/5 is a dependable electro-hydraulic thruster drum
brake designed for standard-duty industrial braking applications. This unit is a fail-safe device, meaning the brake is
applied by a powerful compression spring and is released only when the electro-hydraulic
thruster is energized. This ensures reliable stopping and holding in the event
of a power failure.
Key Technical Highlights:
·
Brake Type: Electro-Hydraulic Thruster
Drum Brake (Spring-applied, Electro-Hydraulic released).
·
Drum Diameter: 300 mm.
·
Thruster Unit: Equipped with a
standard-duty thruster (typically ELDY – 23/5) providing 23 Kg of thrust.
·
Braking Torque: The adjustable braking
torque range is approximately 105 Nm to 440 Nm (44 Kg-m), making it
suitable for standard motor loads.
·
Operation: Features smooth, jerk-free
operation, ease of maintenance, and the ability to replace brake shoes without
dismounting the entire unit.
·
Application: Commonly used as a service
or holding brake on equipment such as EOT cranes, overhead cranes, hoists, and other
material handling machinery in various demanding environments.
SMD-300-50/06
The SMD-300-50/6 is a heavy-duty electro-hydraulic thruster drum
brake designed for demanding industrial applications, offering high braking
power and reliability. As a fail-safe device, the brake is spring-applied to
ensure instantaneous engagement and stopping power in the event of a power
supply failure, and is released by an Eldy (ELD) thruster when energized.
This model is engineered for robust performance in challenging environments
like steel mills, rolling mills, and EOT/overhead crane systems.
Key Technical Highlights:
·
Drum Diameter: 300 mm
·
Thruster Capacity: 50 Kg (Thrust)
· Braking Torque: Designed to provide a high braking torque range, typically up to approximately 870 Nm to 1050 Nm.

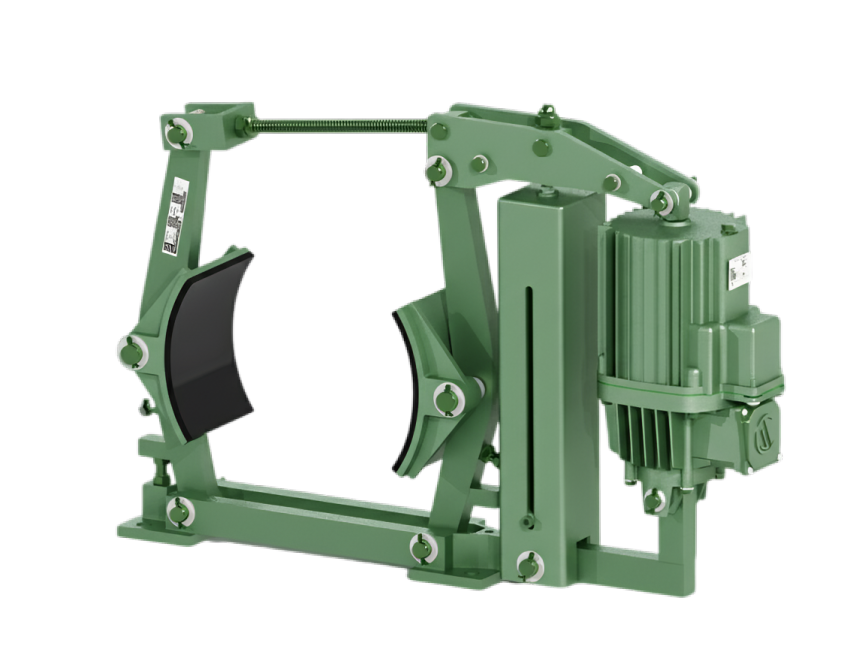

SMD-300-80/06
The SMD-300-80/6 is a heavy-duty, electro-hydraulic thruster drum
brake from Speed-O-Controls, designed for severe industrial applications
requiring high stopping force and reliability. It is a fail-safe brake, meaning
the braking action is automatically and rapidly engaged by a pre-stressed
spring when power is removed or fails, and is released by a powerful Eldy (ELD)
thruster when energized.
This model is particularly suited for machinery like EOT (Electric Overhead
Traveling) cranes, lifts, elevators, and equipment used in steel and rolling
mills where a robust and consistent braking performance is crucial.
Key Technical Highlights:
·
Drum Diameter: 300 mm
·
Thruster Model: ELDY – 80/06
·
Thruster Capacity: 80 Kg (Thrust)
· Braking Torque: Up to 155 Kg-m / 1550 Nm (High-torque rating for heavy loads).
SMD-315-23/05
for service and holding applications in heavy-duty industrial environments.
As a fail-safe device, the brake automatically engages via a compression spring
when power is lost or intentionally removed, ensuring machinery stops safely.
It is released by the included ELD 23/05 electro-hydraulic thruster when
energized.
This model is part of the robust SMD series, manufactured with steel
fabricated frames and asbestos-free brake liners, making it suitable for
arduous environments such as those found in cranes, hoists, lifts, and material
handling systems.
Key Technical Highlights:
·
Drum Diameter: 300 mm to 315 mm
·
Thruster Model: ELD – 23/05
·
Braking Torque Range: Adjustable from 105
Nm up to 420 Nm (approx. 10.5 – 42.0 Kg-m).
·
Thrust: 23 Kg.
·
Rated Voltage: 415 V, 50 Hz, 3-Phase AC
(Standard).
·
Ingress Protection: IP-65 for high
resistance against dust and water jets.
SMD-315-30/05
The SMD-300/315-30/5 is a robust, spring-applied, electro-hydraulic
drum brake designed for service and holding duties in demanding industrial
applications, such as cranes, hoists, and material handling systems. This model
is engineered with a steel fabricated frame for durability and utilizes a
fail-safe design, meaning the brake is applied by spring force when the power
supply is cut. It is released by the powerful ELD 30/05 electro-hydraulic
thruster.
Compared to similar models in the series, the SMD-315-30/5 features a higher
thrust capacity, providing increased braking power.
Key Technical Highlights:
·
Drum Diameter: 300 mm to 315 mm
·
Thruster Model: ELD – 30/05
·
Braking Torque Range: Adjustable from 105
Nm up to 520 Nm / 550 Nm (A higher maximum torque than the ELD 23/05 variant).
·
Thrust: 30 Kg.
·
Rated Voltage: 415 V, 50 Hz, 3-Phase AC
(Standard).
·
Ingress Protection: IP-65,
offering excellent protection against dust and water jets.
·
Features: Includes asbestos-free brake
liners and is designed for ease of maintenance and replacement of brake shoes
without dismounting the brake.
SMD-315-50/06
The SMD-300/315-50/6 is a heavy-duty, spring-applied, electro-hydraulic thruster drum brake designed for service and holding
applications in high-demand industrial environments. As a fail-safe brake, the braking force is consistently applied by a pre-stressed compression spring and is released smoothly and quietly by the energized thruster.
Key Technical Highlights:
· Drum Diameter: 300 mm to 315 mm
· Thruster Model: ELD – 50/06
· High Braking Torque: Adjustable from 105 Nm up to 870 Nm / 1050 Nm, making it suitable for applications requiring significant stopping power.
· Thrust: 50 Kg.
· Stroke: 60 mm.
· Ingress Protection: IP-65
SMD-315-80/06
The SMD-315-80/6 is a robust and powerful electro-hydraulic thruster
drum brake designed by Speed-O-Controls.
This model is a higher-capacity variant in the SMD series, distinguished by
its use of the ELDY-80/06 thruster. It operates as a fail-safe device:
braking force is applied by a pre-stressed compression spring and smoothly
released when the thruster is electrically energized.
Key Technical Highlights:
·
Drum Diameter: 315 mm.
·
Thruster Model: ELDY – 80/06 (80
Kg Thrust).
·
High Braking Torque: Highly adjustable,
with a maximum rating of 1550 Nm (155 Kgm), providing significant
stopping power for critical loads.
· Protection: IP-65 ingress protection
SMD-400-50/06
he SMD-400-50/6 is a heavy-duty electro-hydraulic thruster drum
brake from Speed-O-Controls, designed to deliver safe and reliable fail-safe braking in arduous industrial environments. This model is engineered to provide stopping power for applications with significant rotational inertia. Key to its performance is its adjustable braking torque, ranging from 250 Nm to 1100 Nm.
Key Features:
- Construction: Robust, steel-fabricated frame designed for the demanding conditions in steel and rolling mills, EOT cranes, lifts, and elevators.
- Performance: Consistent braking torque is ensured by high-quality, asbestos-free brake liner material.
- Protection: Features IP-65 ingress protection against dust and water jets.
SMD-400-80/06
The SMD-400-80/6 is a heavy-duty, fail-safe electro-hydraulic drum
brake from Speed-O-Controls, specifically designed for applications requiring a
high level of braking power and safety. Part of the robust SMD series, this
brake is suitable for use in demanding environments like EOT cranes, steel
mills, and heavy industrial machinery.
This model is characterized by its 400 mm drum diameter and is
operated by a powerful ELDY-80/06 thruster, which generates a thrust of 80
Kg to release the brake. The unit is capable of delivering an adjustable
braking torque ranging from 250 Nm to 1800 Nm (approximately 25 to 180
Kgm).
Key Specifications:
·
Braking Torque Range: 250 Nm to 1800 Nm
·
Drum Diameter (Nominal): 400 mm
·
Thruster Type: ELDY-80/06 (80 Kg Thrust)
·
Voltage: 415 V ± 10%, 50 Hz, 3-Phase AC
· Protection: IP-65 ingress protection
SMD-400-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-500-80/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-500-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-500-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-600-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-600-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-600-301/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-630-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-630-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-630-301/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-710-121/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-710-201/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
SMD-710-310/06
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
Related products
See what more we have to offer
Clients
Our reputed clients that trusts us Since 1982
