SMG BRAKE

SMG BRAKE 160-23-5

The SMG 160-23/05 STD is a standard electro-hydraulic thruster drum brake designed by Speed- O-Controls to provide reliable service and holding brake functions for industrial machinery such as cranes and hoists.

As a “fail-safe” brake, it is spring-applied, meaning the brake shoes automatically clamp onto the drum to stop motion when the power is switched off or fails. It is released by an electro-hydraulic thruster. The SMG thruster brakes are built with steel fabricated frames and utilize Eldy Thrusters as per the DIN standard.

Key Specifications:

Model: SMG 160-23/05 STD
Drum Diameter: 160 mm
Braking Torque: 25 Kg-m or 250 Nm
Thruster: Operated by the ELDY-23/05 unit
Thrust: Provides a releasing thrust of 23 Kg (230 N)
Protection: Features IP-65 ingress protection, making it suitable for exposed or dusty
Lining: The brake shoes are made of Aluminum with an asbestos-free
Electrical: Operates on 415 V, 50 Hz, 3-Phase AC with a power consumption of 180 Watt.

SMG BRAKE 200-23-5

The SMG 200-23/05 STD is an electro-hydraulic thruster drum brake designed by Speed-O- Controls for reliable service and holding brake duties in applications like EOT cranes and hoists.

It is a “fail-safe” brake, meaning a powerful compression spring applies the braking force when the 3-phase AC power is cut off or fails. The brake is released by the electro-hydraulic thruster when energized. The brake frames are steel fabricated and use Eldy Thrusters manufactured as per DIN standards.

Key Specifications:

Model: SMG 200-23/05 STD
Drum Diameter: 200 mm
Braking Torque: 30 Kg-m or 300 Nm
Thruster: Operated by the ELDY-23/05 unit
Thrust: Provides a releasing thrust of 23 Kg (230 N)
Lining: The brake shoes feature an Aluminum body with an asbestos-free
Protection: The unit has an ingress protection rating of IP-65 (as per IS/IEC 60529 (2001)), making it resistant to dust and water splashes.

Electrical: It operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of 180 Watt.
Weight: The brake weighs 21 Kg, and the thruster weighs 10

SMG BRAKE 200-30-5

The SMG 200-30/05 STD is an electro-hydraulic thruster drum brake designed by Speed-O- Controls for reliable service and holding duties on industrial equipment such as cranes and hoists.

It operates on a “fail-safe” principle: the brake is applied by a powerful compression spring to stop motion when the 3-phase AC power is interrupted or switched off. The brake is released by the electro-hydraulic thruster when energized.

Key Specifications:

Model: SMG 200-30/05 STD
Drum Diameter: 200 mm
Braking Torque: 40 Kg-m or 400 Nm
Thruster: Operated by the higher-thrust ELDY-30/05 unit
Thrust: Provides a releasing thrust of 30 Kg (300 N)
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

250 Watt.

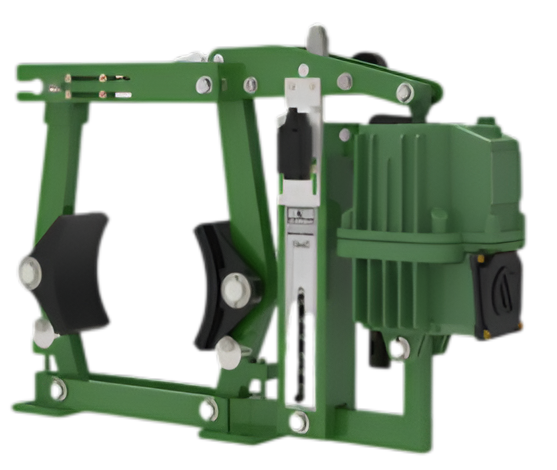

SMG BRAKE 250-23-5

The SMG 250-23/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls for service and holding brake duties in industrial applications like cranes, hoists, and conveyors.

This brake is designed on a “fail-safe” principle, where a powerful compression spring applies the braking force when the 3-phase AC power is removed or fails. The brake frame is steel fabricated and utilizes an Eldy Thruster as per DIN standards.

Key Specifications:

Model: SMG 250-23/05 STD
Drum Diameter: 250 mm
Braking Torque: 33 Kg-m or 330 Nm
Thruster: Operated by the ELDY-23/05 unit, which provides a releasing thrust of 23 Kg

(230 N).

Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

180 Watt.

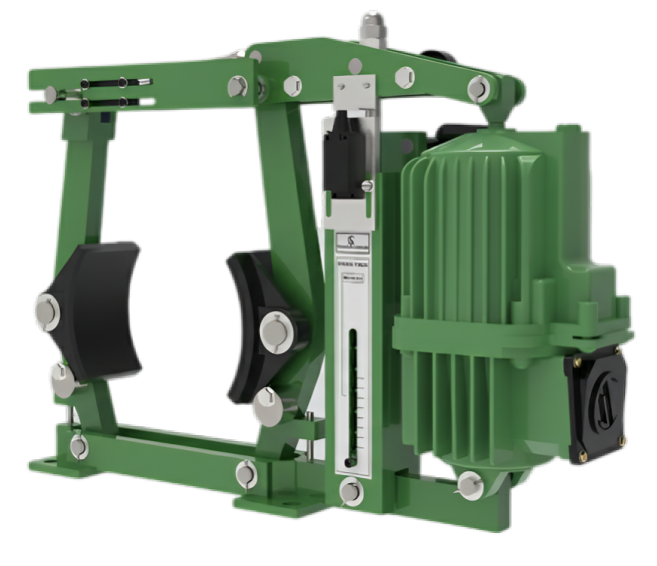

SMG BRAKE 250-30-5

The SMG 250-30/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed to perform reliable service and holding duties on industrial equipment like cranes, hoists, and material handling systems.

This model operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force to stop motion when the three-phase AC power is interrupted or fails. The brake frame is steel fabricated and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 250-30/05 STD
Drum Diameter: 250 mm
Braking Torque: 44 Kg-m or 440 Nm
Thruster: Operated by the higher-thrust ELDY-30/05
Thrust: Provides a releasing thrust of 30 Kg (300 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

250 Watt.

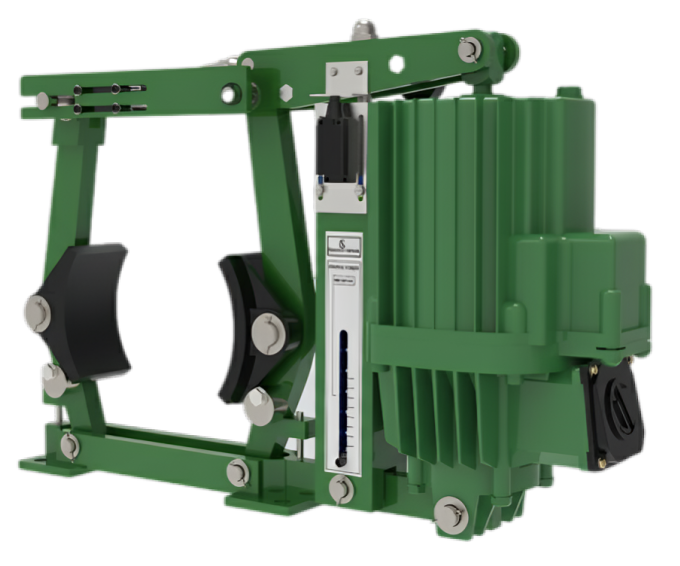

SMG BRAKE 250-50-6

The SMG 250-50/06 STD is a powerful model in the Speed-O-Controls SMG series of electro- hydraulic thruster drum brakes, designed for heavy-duty service and holding brake applications on industrial machinery such as cranes and hoists.

This brake operates on a “fail-safe” principle, where braking force is automatically applied by a powerful compression spring when the 3-phase AC power is interrupted or fails. The unit features steel fabricated frames and uses Eldy Thrusters manufactured as per DIN standards.

Key Specifications:

Model: SMG 250-50/06-STD
Drum Diameter: 250 mm
Braking Torque: 72 Kg-m or 720 Nm
Thruster: Operated by the ELDY-50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: It holds an IP-65 ingress protection rating, ensuring robust performance in challenging industrial environments.
Lining: The brake shoes are Aluminum with an asbestos-free
Electrical: It operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of 330 Watt.

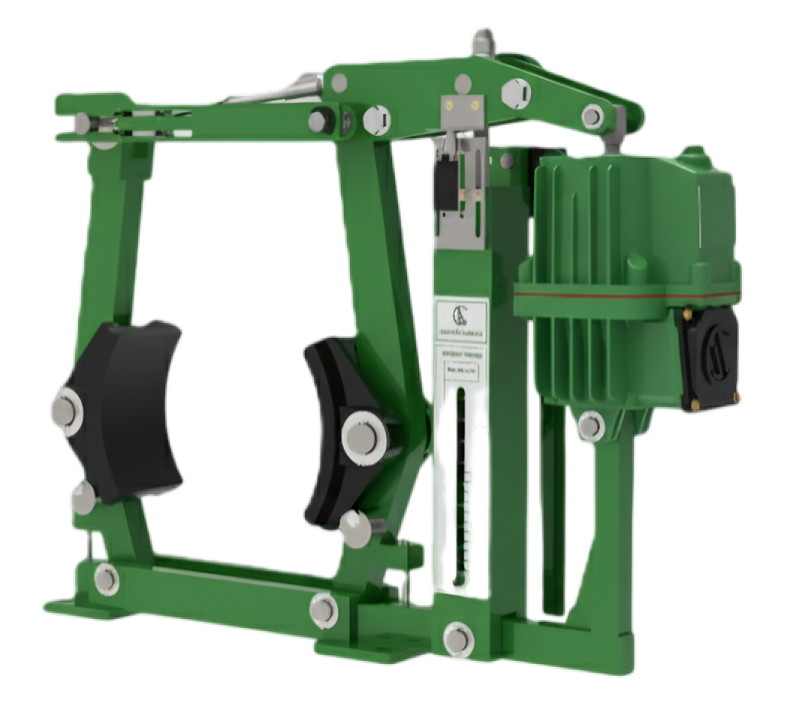

SMG BRAKE 300-23-5

The SMG 300-23/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed for reliable service and holding duties on industrial equipment like cranes, hoists, and conveyors.

This brake operates on a “fail-safe” principle, where a powerful compression spring applies the braking force when the three-phase AC power is interrupted or fails. The brake frame is constructed from steel fabrication and incorporates an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 300-23/05 STD
Drum Diameter: 300 mm
Braking Torque: 44 Kg-m or 440 Nm
Thruster: Operated by the ELDY-23/05
Thrust: Provides a releasing thrust of 23 Kg (230 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

180 Watt.

SMG BRAKE 300-30-5

The SMG 300-30/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed for robust service and holding brake duties on industrial equipment like cranes, hoists, and material handling systems.

This model operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force to stop motion when the three-phase AC power is interrupted or fails. The brake features steel fabricated frames and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 300-30/05 STD
Drum Diameter: 300 mm
Braking Torque: 52 Kg-m or 520 Nm
Thruster: Operated by the higher-thrust ELDY-30/05
Thrust: Provides a releasing thrust of 30 Kg (300 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

250 Watt.

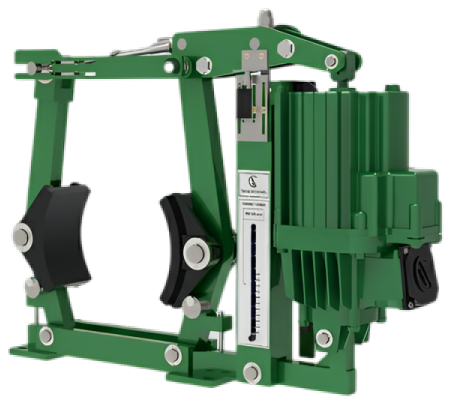

SMG BRAKE 300-50-6

The SMG 300-50/06 STD is a heavy-duty electro-hydraulic thruster drum brake manufactured by Speed-O-Controls. It is designed to provide reliable service and holding brake duties for industrial equipment such as cranes and hoists.

Operating on a “fail-safe” principle, the brake is applied by a powerful compression spring when the 3-phase AC power is interrupted or fails. The unit features steel fabricated frames and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 300-50/06 STD
Drum Diameter: 300 mm
Braking Torque: 87 Kg-m or 870 Nm
Thruster: Operated by the ELDY-50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: Rated for IP 65 ingress protection, ensuring resilience in industrial
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

330 Watt.

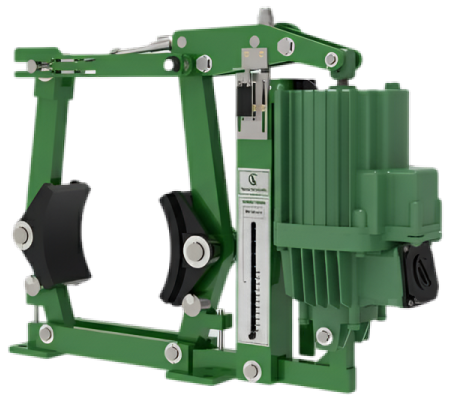

SMG BRAKE 300-80-6

The SMG 300-80/06 STD is a high-torque electro-hydraulic thruster drum brake manufactured by Speed-O-Controls, designed for heavy-duty service and holding brake applications on industrial equipment like cranes, hoists, and conveyors.

It functions on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force when the 3-phase AC power is interrupted or fails. The unit is built with steel fabricated frames and utilizes an Eldy Thruster conforming to DIN standards.

Key Specifications:

Model: SMG 300-80/06 STD
Drum Diameter: 300 mm
Braking Torque: 155 Kg-m or 1550 Nm
Thruster: Operated by the high-thrust ELDY-80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in challenging industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

380 Watt.

SMG BRAKE 315-23-5

The SMG 315-23/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls , designed for reliable service and holding duties on industrial equipment like cranes, hoists, and conveyors.

This model operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force when the three-phase AC power is interrupted or fails. The brake frame is constructed from steel fabrication and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 315-23/05 STD
Drum Diameter: 315 mm
Braking Torque: 44 Kg-m or 440 Nm
Thruster: Operated by the ELDY-23/05
Thrust: Provides a releasing thrust of 23 Kg (230 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

180 Watt.

SMG BRAKE 315-30-5

The SMG 315-30/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed for robust service and holding brake duties on industrial equipment like cranes, hoists, and material handling systems.

This model operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force when the three-phase AC power is interrupted or fails. The brake features steel fabricated frames and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 315-30/05 STD
Drum Diameter: 315 mm
Braking Torque: 52 Kg-m or 520 Nm
Thruster: Operated by the higher-thrust ELDY 30/05
Thrust: Provides a releasing thrust of 30 Kg (300 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

250 Watt.

SMG BRAKE 315-50-6

The SMG 315-50/06 STD is a heavy-duty electro-hydraulic thruster drum brake from the Speed- O-Controls SMG series, intended for service and holding brake duties on industrial machinery such as cranes and hoists.

It is engineered with a “fail-safe” design, meaning a powerful compression spring applies the braking force automatically when the 3-phase AC power is interrupted or fails. The brake features steel fabricated frames and utilizes an Eldy Thruster built to DIN standards.

Key Specifications:

Model: SMG 315-50/06 STD
Drum Diameter: 315 mm
Braking Torque: 87 Kg-m or 870 Nm
Thruster: Operated by the ELDY 50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: It is rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resilience in dusty and wet industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

330 Watt.

SMG BRAKE 315-80-6

The SMG 315-80/06 STD is a maximum-duty electro-hydraulic thruster drum brake from Speed-O-Controls, designed for heavy-duty service and holding brake duties on demanding industrial machinery such as cranes and hoists.

This brake operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force when the 3-phase AC power is interrupted or fails. The unit is built with steel fabricated frames and uses a high-capacity Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 315-80/06 STD
Drum Diameter: 315 mm
Braking Torque: 155 Kg-m or 1550 Nm
Thruster: Operated by the high-thrust ELDY 80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in harsh industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

380 Watt.

SMG BRAKE 400-50-6

The SMG 400-50/06 STD is an electro-hydraulic thruster drum brake from the Speed-O- Controls SMG series, designed for service and holding brake duties on industrial applications like cranes and hoists.

It is engineered as a “fail-safe” brake, where a powerful compression spring automatically applies the braking force upon power interruption or failure. The brake frame is steel fabricated and employs an Eldy Thruster built to DIN standards.

Key Specifications:

Model: SMG 400-50/06 STD
Drum Diameter: 400 mm
Braking Torque: 86 Kg-m or 860 Nm
Thruster: Operated by the ELDY-50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: Rated for IP-65 ingress protection, ensuring resilience in challenging industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

330 Watt.

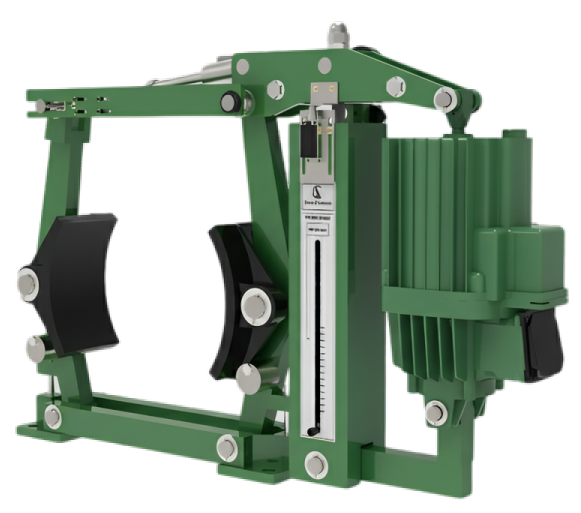

SMG BRAKE 400-80-6

The SMG 400-80/06 STD is a heavy-duty electro-hydraulic thruster drum brake from the Speed- O-Controls SMG series, suitable for reliable service and holding brake duties on industrial equipment.

It is a “fail-safe” design, where the braking force is applied by a powerful compression spring when the 3-phase AC power supply is interrupted or switched off. The unit features steel fabricated frames and uses an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 400-80/06 STD
Drum Diameter: 400 mm
Braking Torque: 162 Kg-m or 1620 Nm
Thruster: Operated by the high-thrust ELDY-80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), offering high resistance to dust and water.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

380 Watt.

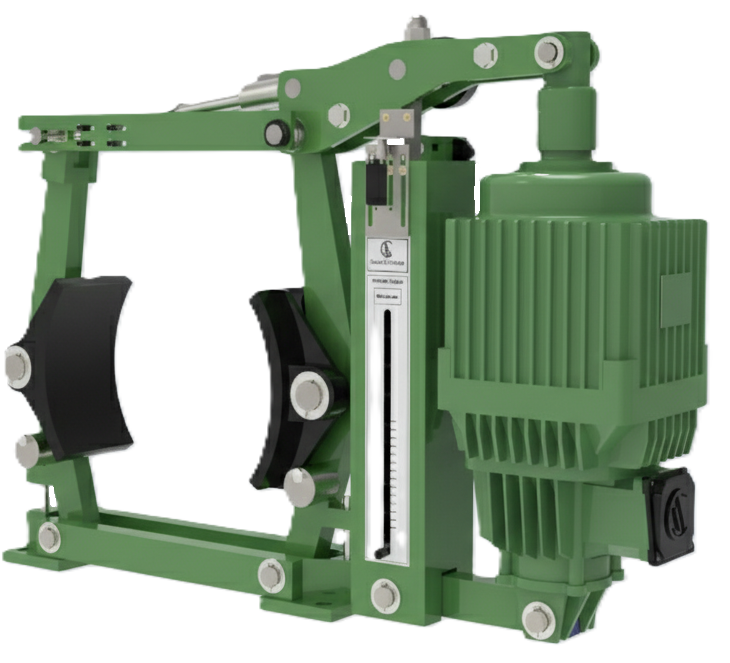

SMG BRAKE 400-121-6

The SMG 400-121/06 STD is a very high-capacity electro-hydraulic thruster drum brake from Speed-O-Controls, designed for the most demanding service and holding brake duties on industrial equipment like heavy cranes and hoists.

This model operates on the standard “fail-safe” principle, where braking is applied by a powerful compression spring when the three-phase AC power is interrupted or fails, and released by the Eldy Thruster when energized.

Key Specifications:

Model: SMG 400-121/06 STD
Drum Diameter: 400 mm
Braking Torque: 267 Kg-m or 2670 Nm
Thruster: Operated by the highest-thrust ELDY 121/06
Thrust: Provides a massive releasing thrust of 121 Kg (1210 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial settings.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

410 Watt.

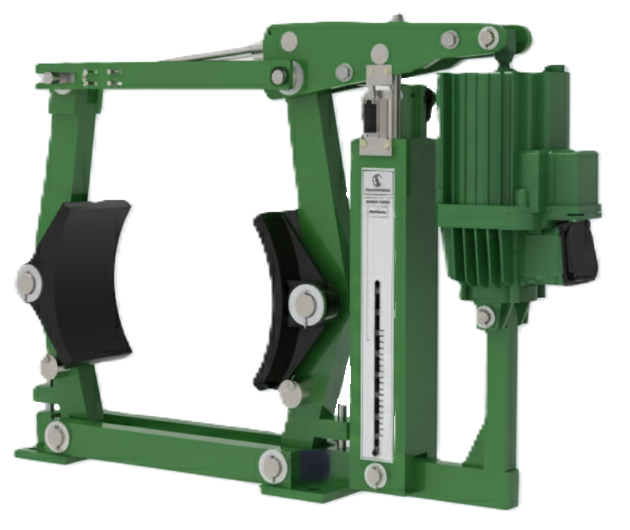

SMG BRAKE 500-80-6

The SMG 500-80/06 STD is a heavy-duty electro-hydraulic thruster drum brake from the Speed- O-Controls SMG series, designed for reliable service and holding duties on large industrial equipment, such as cranes and hoists.

The brake operates on a “fail-safe” principle, where a powerful compression spring applies the braking force when the 3-phase AC power is interrupted or fails. It features steel fabricated frames and uses an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 500-80/06 STD
Drum Diameter: 500 mm
Braking Torque: 160 Kg-m or 1600 Nm
Thruster: Operated by the ELDY-80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring high resistance to dust and water.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

380 Watt.

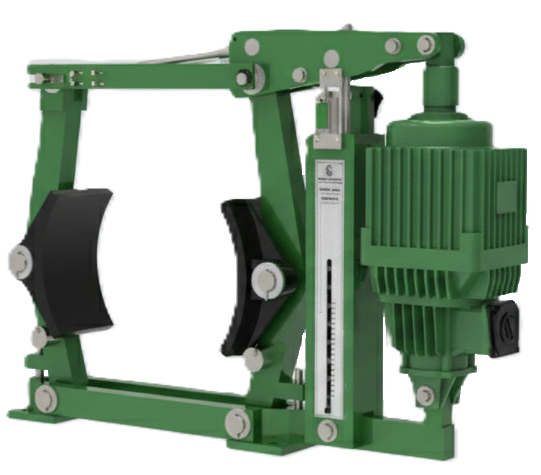

SMG BRAKE 500-121-6

The SMG 500-121/06 STD is a high-capacity electro-hydraulic thruster drum brake from Speed- O-Controls, designed for demanding service and holding brake duties on heavy industrial equipment.

This model adheres to the “fail-safe” principle, with braking applied by a powerful compression spring upon loss of the 3-phase AC power. It is built with steel fabricated frames and utilizes a high-thrust Eldy Thruster conforming to DIN standards.

Key Specifications:

Model: SMG 500-121/06 STD
Drum Diameter: 500 mm
Braking Torque: 350 Kg-m or 3500 Nm
Thruster: Operated by the high-thrust ELDY-121/06
Thrust: Provides a substantial releasing thrust of 121 Kg (1210 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial settings.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

410 Watt.

SMG BRAKE 500-201-6

The SMG 500-201/06 STD is a maximum-duty electro-hydraulic thruster drum brake, representing one of the highest capacity models in the Speed-O-Controls range. It is intended for the most critical service and holding brake duties on very heavy industrial machinery.

It features a “fail-safe” design, utilizing a powerful compression spring to automatically apply the maximum braking force when the 3-phase AC power is interrupted. The brake is constructed with steel fabricated frames and utilizes the largest ELDY-201/06 thruster unit, built to DIN standards.

Key Specifications:

Model: SMG 500-201/06 STD
Drum Diameter: 500 mm
Braking Torque: 522 Kg-m or 5220 Nm
Thruster: Operated by the extremely high-thrust ELDY-201/06
Thrust: Provides a maximum releasing thrust of 201 Kg (2010 N).
Protection: Rated for IP-65 ingress protection, ensuring robust performance and protection against dust and water in the harshest environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

485 Watt.

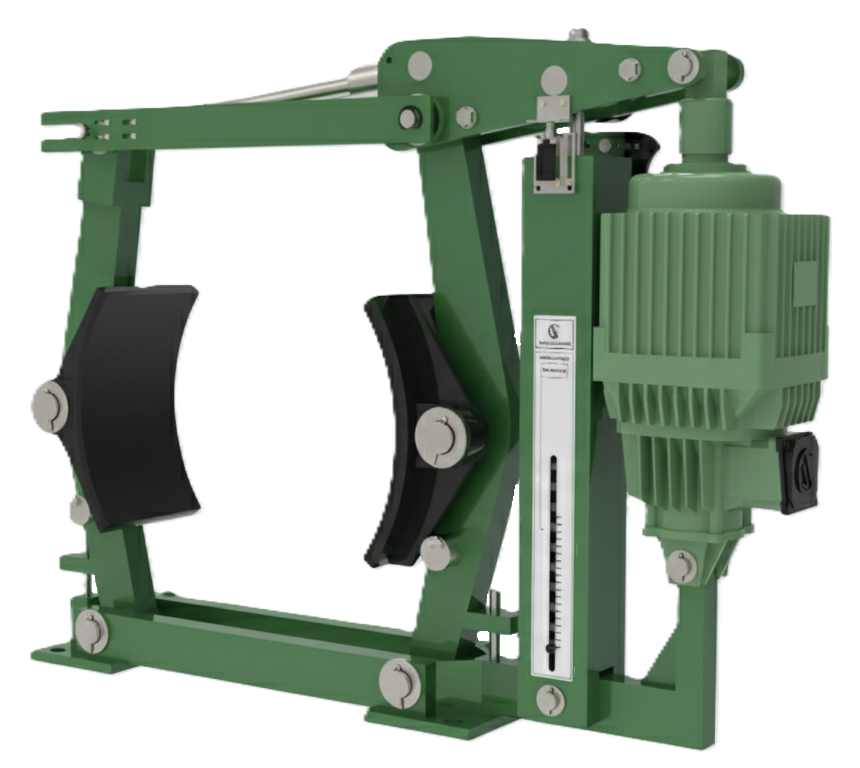

SMG BRAKE 600-121-6

The SMG 600-121/06 STD is a heavy-duty electro-hydraulic thruster drum brake designed for reliable service and holding brake duties on large industrial machinery, such as heavy cranes and hoists.

This brake is engineered with a “fail-safe” mechanism, meaning a powerful compression spring automatically applies the braking force whenever the 3-phase AC power is interrupted or fails. It is constructed with robust steel fabricated frames and uses a high-thrust Eldy Thruster built to DIN standards.

Key Specifications:

Model: SMG 600-121/06 STD
Drum Diameter: 600 mm
Braking Torque: 370 Kg-m or 3700 Nm
Thruster: Operated by the high-thrust ELDY-121/06
Thrust: Provides a substantial releasing thrust of 121 Kg (1210 N).
Protection: Rated for IP-65 ingress protection, ensuring high resistance to dust and water in harsh industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free

Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

410 Watt.

SMG BRAKE 600-201-6

The SMG 600-201/06 STD is a maximum-duty electro-hydraulic thruster drum brake, providing a very high braking capacity for critical service and holding duties on the largest industrial equipment.

This model features a reliable “fail-safe” design, utilizing a powerful compression spring to apply the brake automatically upon the interruption or failure of the 3-phase AC power. It is built with steel fabricated frames and employs the high-performance ELDY-201/06 thruster unit, manufactured to DIN standards.

Key Specifications:

Model: SMG 600-201/06 STD
Drum Diameter: 600 mm
Braking Torque: 590 Kg-m or 5900 Nm
Thruster: Operated by the high-thrust ELDY-201/06
Thrust: Provides a strong releasing thrust of 201 Kg (2010 N).
Protection: Rated for IP-65 ingress protection, ensuring robust performance against dust and water in demanding environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

485 Watt.

SMG BRAKE 600-301-6

The SMG 600-301/06 STD represents the pinnacle of capacity in the SMG series of electro- hydraulic thruster drum brakes. It is designed for the most extreme service and holding brake duties on critical and very heavy industrial applications.

This brake utilizes a “fail-safe” operating principle, where the maximum braking force is automatically applied by a powerful compression spring upon power loss. It is built with highly robust steel fabricated frames and incorporates the maximum-thrust ELDY-301/06 thruster unit.

Key Specifications:

Model: SMG 600-301/06 STD
Drum Diameter: 600 mm
Braking Torque: 790 Kg-m or 7900 Nm
Thruster: Operated by the powerful ELDY-301/06
Thrust: Provides a maximum releasing thrust of 301 Kg (3010 N).

Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring long-term reliability in harsh industrial environments.
Lining: Features Aluminum brake shoes with an asbestos-free
Electrical: Operates on 415 V ± 10%, 50 Hz, 3-Phase AC with a power consumption of

540 Watt.

SMG BRAKE 630-121-6

This model is a reliable electro-hydraulic thruster drum brake designed for standard service duties on industrial applications. It is engineered with robust components to ensure consistent braking and utilizes the ELDY-121/06 thruster unit for operation⁴⁴⁴⁴.

Model: SMG 630-121/06 STD ⁵⁵⁵
Drum Diameter: 630 mm ⁶⁶⁶
Shoe Width: 225 MM ⁷⁷⁷
Braking Torque: 370 Kg-m or 3700 Nm ⁸⁸⁸
Thruster Model: ELDY-121/06 ⁹⁹⁹
Thrust: 121 Kg or 1210 N ¹⁰¹⁰¹⁰
Stroke: 60 mm ¹¹¹¹¹¹
Lining: Aluminum brake shoes with an Asbestos free Liner ¹²¹²¹²
Friction Coefficient ($\mu$): 42 ¹³¹³¹³
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC ¹⁴¹⁴¹⁴, drawing 25 Amps ($\pm$2%) ¹⁵¹⁵¹⁵with a Power consumption of 410 Watt ($\pm$2%)¹⁶¹⁶¹⁶.
Protection: IP-65 Ingress Protection (IS/IEC 60529 (2001))¹⁷¹⁷¹⁷.
Weights: Brake is 192 Kg ¹⁸¹⁸¹⁸, Thruster is 33 Kg¹⁹¹⁹¹⁹.

SMG BRAKE 630-201-6

This model offers increased braking performance for heavier applications and uses the ELDY- 201/06 thruster. Its design ensures a reliable product suitable for demanding industrial environments^20202020.

Model: SMG 630-201/06 STD ²¹²¹²¹
Drum Diameter: 630 mm ²²²²²²
Shoe Width: 225 MM ²³²³²³
Braking Torque: 590 Kg-m or 5900 Nm ²⁴²⁴²⁴
Thruster Model: ELDY-201/06 ²⁵²⁵²⁵
Thrust: 201 Kg or 2010 N ²⁶²⁶²⁶
Stroke: 60 mm ²⁷²⁷²⁷
Lining: Aluminum brake shoes with an Asbestos free Liner ²⁸²⁸²⁸
Friction Coefficient ($\mu$): 42 ²⁹²⁹²⁹
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC ³⁰³⁰³⁰, drawing 4 Amps ($\pm$2%) ³¹³¹³¹with a Power consumption of 485 Watt ($\pm$2%)³²³²³².
Protection: IP-65 Ingress Protection (IS/IEC 60529 (2001))³³³³³³.
Weights: Brake is 192 Kg ³⁴³⁴³⁴, Thruster is 35 Kg³⁵³⁵³⁵.

SMG BRAKE 630-301-6

This high-capacity brake model is designed for the most demanding service and holding brake duties. It achieves maximum performance by incorporating the powerful ELDY-301/06 thruster unit and offers excellent long-term reliability^36363636.

Model: SMG 630-301/06 STD ³⁷³⁷³⁷
Drum Diameter: 630 mm ³⁸³⁸³⁸
Shoe Width: 225 MM ³⁹³⁹³⁹
Braking Torque: 790 Kg-m or 7900 Nm ⁴⁰⁴⁰⁴⁰
Thruster Model: ELDY-301/06 ⁴¹⁴¹⁴¹
Thrust: 301 Kg or 3010 N ⁴²⁴²⁴²
Stroke: 60 mm ⁴³⁴³⁴³
Lining: Aluminum brake shoes with an Asbestos free Liner ⁴⁴⁴⁴⁴⁴
Friction Coefficient ($\mu$): 42 ⁴⁵⁴⁵⁴⁵
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC ⁴⁶⁴⁶⁴⁶, drawing 52 Amps ($\pm$2%) ⁴⁷⁴⁷⁴⁷with a Power consumption of 540 Watt ($\pm$2%)⁴⁸⁴⁸⁴⁸.
Protection: IP 65 Ingress Protection (IS/IEC 60529 (2001))⁴⁹⁴⁹⁴⁹.
Weights: Brake is 192 Kg ⁵⁰⁵⁰⁵⁰, Thruster is 37 Kg⁵¹⁵¹⁵¹.

SMG BRAKE 710-121-6

This brake model is one of the larger 710 mm diameter units, designed for general industrial applications where a higher drum size is required⁴⁰⁴⁰⁴⁰. It provides strong performance and reliability, utilizing the ELDY-121/06 thruster unit⁴¹⁴¹⁴¹.

Model: SMG 710-121/06 STD ⁴²
Drum Diameter: 710 mm ⁴³
Braking Torque: 380 Kg-m or 3800 Nm ⁴⁴
Thruster Model: ELDY-121/06 ⁴⁵
Thrust: 121 Kg or 1210 N ⁴⁶
Lining: Aluminum brake shoes with an Asbestos free Liner⁴⁷. The Friction Coefficient ($\mu$) is 0.42⁴⁸.
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC, with a Power consumption of 410 Watt (±2%)⁴⁹.
Protection: Rated for IP-65 Ingress Protection (IS/IEC 60529 (2001))⁵⁰.
Weights: Brake is 237 Kg, Thruster is 33 Kg⁵¹.

SMG BRAKE 710-201-6

This mid-level 710 series model is capable of handling significant loads and demanding operating cycles^52525252. It features the ELDY-201/06 thruster to deliver a substantial increase in torque capacity over the 121 model⁵³.

Model: SMG 710-201/06 STD ⁵⁴
Drum Diameter: 710 mm ⁵⁵
Braking Torque: 630 Kg-m or 6300 Nm ⁵⁶
Thruster Model: ELDY-201/06 ⁵⁷
Thrust: 201 Kg or 2010 N ⁵⁸
Lining: Aluminum brake shoes with an Asbestos free Liner⁵⁹. The Friction Coefficient ($\mu$) is 0.42⁶⁰.
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC, with a Power consumption of 485 Watt ($\pm$2%)⁶¹.
Protection: Rated for IP-65 Ingress Protection (IS/IEC 60529 (2001))⁶².
Weights: Brake is 237 Kg, Thruster is 35 Kg⁶³.

SMG BRAKE 710-301-6

This model represents the pinnacle of capacity in the 710 series, designed for the most extreme service and holding brake duties on critical and very heavy industrial applications^64646464. It achieves its maximum braking force by incorporating the powerful ELDY-301/06 thruster unit⁶⁵.

Model: SMG 710-301/06 STD ⁶⁶
Drum Diameter: 710 mm ⁶⁷
Braking Torque: 940 Kg-m or 9400 Nm ⁶⁸
Thruster Model: ELDY-301/06 ⁶⁹
Thrust: 301 Kg or 3010 N ⁷⁰
Lining: Aluminum brake shoes with an Asbestos free Liner⁷¹. The Friction Coefficient ($\mu$) is 0.42⁷².
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC, with a Power consumption of 540 Watt⁷³.
Protection: Rated for IP-65 Ingress Protection (IS/IEC 60529 (2001)), ensuring long- term reliability in harsh industrial environments⁷⁴.
Weights: Brake is 237 Kg, Thruster is 37 Kg⁷⁵.

SMG BRAKE 160-23-5

The SMG 160-23/05 STD is a standard electro-hydraulic thruster drum brake designed by Speed- O-Controls to provide reliable service and holding brake functions for industrial machinery such as cranes and hoists.

Key Specifications:

Model: SMG 160-23/05 STD
Drum Diameter: 160 mm
Braking Torque: 25 Kg-m or 250 Nm
Thruster: Operated by the ELDY-23/05 unit
Thrust: Provides a releasing thrust of 23 Kg (230 N)
Protection: Features IP-65 ingress protection, making it suitable for exposed or dusty

SMG BRAKE 200-23-5

The SMG 200-23/05 STD is an electro-hydraulic thruster drum brake designed by Speed-O- Controls for reliable service and holding brake duties in applications like EOT cranes and hoists.

Key Specifications:

Model: SMG 200-23/05 STD
Drum Diameter: 200 mm
Braking Torque: 30 Kg-m or 300 Nm
Thruster: Operated by the ELDY-23/05 unit
Thrust: Provides a releasing thrust of 23 Kg (230 N)
Lining: The brake shoes feature an Aluminum body with an asbestos-free
Protection: The unit has an ingress protection rating of IP-65 (as per IS/IEC 60529 (2001)), making it resistant to dust and water splashes.

SMG BRAKE 200-30-5

The SMG 200-30/05 STD is an electro-hydraulic thruster drum brake designed by Speed-O- Controls for reliable service and holding duties on industrial equipment such as cranes and hoists.

Key Specifications:

Model: SMG 200-30/05 STD
Drum Diameter: 200 mm
Braking Torque: 40 Kg-m or 400 Nm
Thruster: Operated by the higher-thrust ELDY-30/05 unit
Thrust: Provides a releasing thrust of 30 Kg (300 N)
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.

SMG BRAKE 250-23-5

The SMG 250-23/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls for service and holding brake duties in industrial applications like cranes, hoists, and conveyors.

Key Specifications:

Model: SMG 250-23/05 STD
Drum Diameter: 250 mm
Braking Torque: 33 Kg-m or 330 Nm
Thruster: Operated by the ELDY-23/05 unit, which provides a releasing thrust of 23 Kg(230 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial environments.

SMG BRAKE 250-30-5

Key Specifications:

Model: SMG 250-23/05 STD
Drum Diameter: 250 mm
Braking Torque: 33 Kg-m or 330 Nm
Thruster: Operated by the ELDY-23/05 unit, which provides a releasing thrust of 23 Kg(230 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial environments.

SMG BRAKE 250-50-6

The SMG 250-50/06 STD is a powerful model in the Speed-O-Controls SMG series of electro- hydraulic thruster drum brakes, designed for heavy-duty service and holding brake applications on industrial machinery such as cranes and hoists.

Key Specifications:

Model: SMG 250-50/06-STD
Drum Diameter: 250 mm
Braking Torque: 72 Kg-m or 720 Nm
Thruster: Operated by the ELDY-50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: It holds an IP-65 ingress protection rating, ensuring robust performance in challenging industrial environments.

SMG BRAKE 300-23-5

The SMG 300-23/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed for reliable service and holding duties on industrial equipment like cranes, hoists, and conveyors.

Key Specifications:

Model: SMG 300-23/05 STD
Drum Diameter: 300 mm
Braking Torque: 44 Kg-m or 440 Nm
Thruster: Operated by the ELDY-23/05
Thrust: Provides a releasing thrust of 23 Kg (230 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.

SMG BRAKE 300-30-5

The SMG 300-30/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed for robust service and holding brake duties on industrial equipment like cranes, hoists, and material handling systems.

This model operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force to stop motion when the three-phase AC power is interrupted or fails. The brake features steel fabricated frames and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 300-30/05 STD
Drum Diameter: 300 mm
Braking Torque: 52 Kg-m or 520 Nm
Thruster: Operated by the higher-thrust ELDY-30/05
Thrust: Provides a releasing thrust of 30 Kg (300 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.

SMG BRAKE 300-50-6

The SMG 300-50/06 STD is a heavy-duty electro-hydraulic thruster drum brake manufactured by Speed-O-Controls. It is designed to provide reliable service and holding brake duties for industrial equipment such as cranes and hoists.

Key Specifications:

Model: SMG 300-50/06 STD
Drum Diameter: 300 mm
Braking Torque: 87 Kg-m or 870 Nm
Thruster: Operated by the ELDY-50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: Rated for IP 65 ingress protection, ensuring resilience in industrial

SMG BRAKE 300-80-6

The SMG 300-80/06 STD is a high-torque electro-hydraulic thruster drum brake manufactured by Speed-O-Controls, designed for heavy-duty service and holding brake applications on industrial equipment like cranes, hoists, and conveyors.

Key Specifications:

Model: SMG 300-80/06 STD
Drum Diameter: 300 mm
Braking Torque: 155 Kg-m or 1550 Nm
Thruster: Operated by the high-thrust ELDY-80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in challenging industrial environments.

SMG BRAKE 315-23-5

The SMG 315-23/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls , designed for reliable service and holding duties on industrial equipment like cranes, hoists, and conveyors.

Key Specifications:

Model: SMG 315-23/05 STD
Drum Diameter: 315 mm
Braking Torque: 44 Kg-m or 440 Nm
Thruster: Operated by the ELDY-23/05
Thrust: Provides a releasing thrust of 23 Kg (230 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.

SMG BRAKE 315-30-5

The SMG 315-30/05 STD is an electro-hydraulic thruster drum brake manufactured by Speed- O-Controls, designed for robust service and holding brake duties on industrial equipment like cranes, hoists, and material handling systems.

This model operates on a “fail-safe” principle, where a powerful compression spring automatically applies the braking force when the three-phase AC power is interrupted or fails. The brake features steel fabricated frames and utilizes an Eldy Thruster built according to DIN standards.

Key Specifications:

Model: SMG 315-30/05 STD
Drum Diameter: 315 mm
Braking Torque: 52 Kg-m or 520 Nm
Thruster: Operated by the higher-thrust ELDY 30/05
Thrust: Provides a releasing thrust of 30 Kg (300 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in industrial environments.

SMG BRAKE 315-50-6

The SMG 315-50/06 STD is a heavy-duty electro-hydraulic thruster drum brake from the Speed- O-Controls SMG series, intended for service and holding brake duties on industrial machinery such as cranes and hoists.

Key Specifications:

Model: SMG 315-50/06 STD
Drum Diameter: 315 mm
Braking Torque: 87 Kg-m or 870 Nm
Thruster: Operated by the ELDY 50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: It is rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resilience in dusty and wet industrial environments.

SMG BRAKE 315-80-6

The SMG 315-80/06 STD is a maximum-duty electro-hydraulic thruster drum brake from Speed-O-Controls, designed for heavy-duty service and holding brake duties on demanding industrial machinery such as cranes and hoists.

Key Specifications:

Model: SMG 315-80/06 STD
Drum Diameter: 315 mm
Braking Torque: 155 Kg-m or 1550 Nm
Thruster: Operated by the high-thrust ELDY 80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring resistance to dust and water in harsh industrial environments.

SMG BRAKE 400-50-6

The SMG 400-50/06 STD is an electro-hydraulic thruster drum brake from the Speed-O- Controls SMG series, designed for service and holding brake duties on industrial applications like cranes and hoists.

Key Specifications:

Model: SMG 400-50/06 STD
Drum Diameter: 400 mm
Braking Torque: 86 Kg-m or 860 Nm
Thruster: Operated by the ELDY-50/06
Thrust: Provides a releasing thrust of 50 Kg (500 N).
Protection: Rated for IP-65 ingress protection, ensuring resilience in challenging industrial environments.

SMG BRAKE 400-80-6

The SMG 400-80/06 STD is a heavy-duty electro-hydraulic thruster drum brake from the Speed- O-Controls SMG series, suitable for reliable service and holding brake duties on industrial equipment.

Key Specifications:

Model: SMG 400-80/06 STD
Drum Diameter: 400 mm
Braking Torque: 162 Kg-m or 1620 Nm
Thruster: Operated by the high-thrust ELDY-80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), offering high resistance to dust and water.

SMG BRAKE 400-121-6

The SMG 400-121/06 STD is a very high-capacity electro-hydraulic thruster drum brake from Speed-O-Controls, designed for the most demanding service and holding brake duties on industrial equipment like heavy cranes and hoists.

Key Specifications:

Model: SMG 400-121/06 STD
Drum Diameter: 400 mm
Braking Torque: 267 Kg-m or 2670 Nm
Thruster: Operated by the highest-thrust ELDY 121/06
Thrust: Provides a massive releasing thrust of 121 Kg (1210 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial settings.

SMG BRAKE 500-80-6

The SMG 500-80/06 STD is a heavy-duty electro-hydraulic thruster drum brake from the Speed- O-Controls SMG series, designed for reliable service and holding duties on large industrial equipment, such as cranes and hoists.

Key Specifications:

Model: SMG 500-80/06 STD
Drum Diameter: 500 mm
Braking Torque: 160 Kg-m or 1600 Nm
Thruster: Operated by the ELDY-80/06
Thrust: Provides a releasing thrust of 80 Kg (800 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring high resistance to dust and water.

SMG BRAKE 500-121-6

The SMG 500-121/06 STD is a high-capacity electro-hydraulic thruster drum brake from Speed- O-Controls, designed for demanding service and holding brake duties on heavy industrial equipment.

Key Specifications:

Model: SMG 500-121/06 STD
Drum Diameter: 500 mm
Braking Torque: 350 Kg-m or 3500 Nm
Thruster: Operated by the high-thrust ELDY-121/06
Thrust: Provides a substantial releasing thrust of 121 Kg (1210 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring reliability in harsh industrial settings.

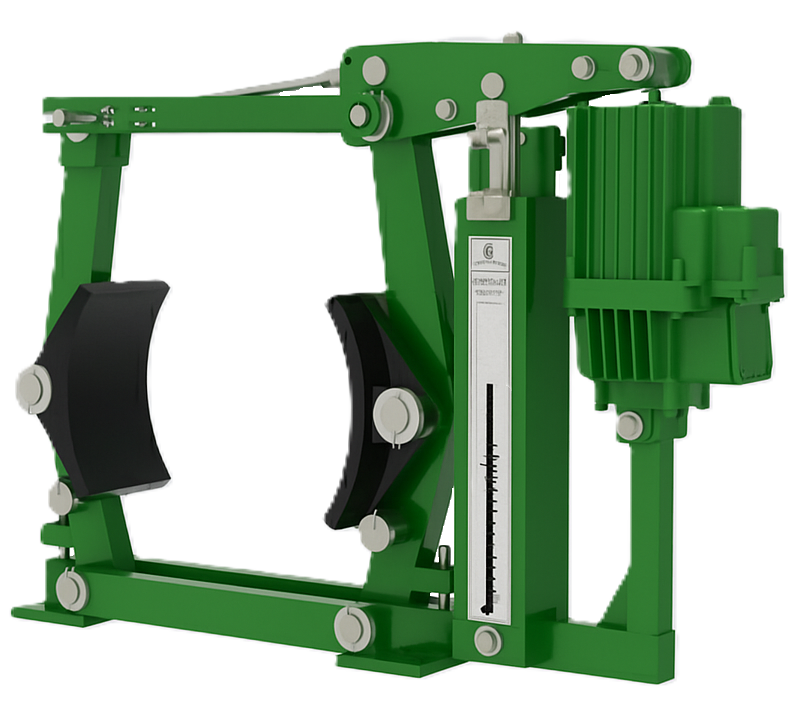

SMG BRAKE 500-201-6

The SMG 500-201/06 STD is a maximum-duty electro-hydraulic thruster drum brake, representing one of the highest capacity models in the Speed-O-Controls range. It is intended for the most critical service and holding brake duties on very heavy industrial machinery.

Key Specifications:

Model: SMG 500-201/06 STD
Drum Diameter: 500 mm
Braking Torque: 522 Kg-m or 5220 Nm
Thruster: Operated by the extremely high-thrust ELDY-201/06
Thrust: Provides a maximum releasing thrust of 201 Kg (2010 N).
Protection: Rated for IP-65 ingress protection, ensuring robust performance and protection against dust and water in the harshest environments.

SMG BRAKE 600-121-6

The SMG 600-121/06 STD is a heavy-duty electro-hydraulic thruster drum brake designed for reliable service and holding brake duties on large industrial machinery, such as heavy cranes and hoists.

Key Specifications:

Model: SMG 600-121/06 STD
Drum Diameter: 600 mm
Braking Torque: 370 Kg-m or 3700 Nm
Thruster: Operated by the high-thrust ELDY-121/06
Thrust: Provides a substantial releasing thrust of 121 Kg (1210 N).
Protection: Rated for IP-65 ingress protection, ensuring high resistance to dust and water in harsh industrial environments.

SMG BRAKE 600-201-6

The SMG 600-201/06 STD is a maximum-duty electro-hydraulic thruster drum brake, providing a very high braking capacity for critical service and holding duties on the largest industrial equipment.

This model features a reliable “fail-safe” design, utilizing a powerful compression spring to apply the brake automatically upon the interruption or failure of the 3-phase AC power. It is built with steel fabricated frames and employs the high-performance ELDY-201/06 thruster unit, manufactured to DIN standards.

Key Specifications:

Model: SMG 600-201/06 STD
Drum Diameter: 600 mm
Braking Torque: 590 Kg-m or 5900 Nm
Thruster: Operated by the high-thrust ELDY-201/06
Thrust: Provides a strong releasing thrust of 201 Kg (2010 N).
Protection: Rated for IP-65 ingress protection, ensuring robust performance against dust and water in demanding environments.

SMG BRAKE 600-301-6

The SMG 600-301/06 STD represents the pinnacle of capacity in the SMG series of electro- hydraulic thruster drum brakes. It is designed for the most extreme service and holding brake duties on critical and very heavy industrial applications.

Key Specifications:

Model: SMG 600-301/06 STD
Drum Diameter: 600 mm
Braking Torque: 790 Kg-m or 7900 Nm
Thruster: Operated by the powerful ELDY-301/06
Thrust: Provides a maximum releasing thrust of 301 Kg (3010 N).
Protection: Rated for IP-65 ingress protection (as per IS/IEC 60529 (2001)), ensuring long-term reliability in harsh industrial environments.

SMG BRAKE 630-121-6

Model: SMG 630-121/06 STD ⁵⁵⁵
Drum Diameter: 630 mm ⁶⁶⁶
Shoe Width: 225 MM ⁷⁷⁷
Braking Torque: 370 Kg-m or 3700 Nm ⁸⁸⁸
Thruster Model: ELDY-121/06 ⁹⁹⁹
Thrust: 121 Kg or 1210 N ¹⁰¹⁰¹⁰
Stroke: 60 mm ¹¹¹¹¹¹
Lining: Aluminum brake shoes with an Asbestos free Liner ¹²¹²¹²
Friction Coefficient ($\mu$): 42 ¹³¹³¹³
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC ¹⁴¹⁴¹⁴, drawing 25 Amps ($\pm$2%) ¹⁵¹⁵¹⁵with a Power consumption of 410 Watt ($\pm$2%)¹⁶¹⁶¹⁶.

SMG BRAKE 630-201-6

Model: SMG 630-201/06 STD ²¹²¹²¹
Drum Diameter: 630 mm ²²²²²²
Shoe Width: 225 MM ²³²³²³
Braking Torque: 590 Kg-m or 5900 Nm ²⁴²⁴²⁴
Thruster Model: ELDY-201/06 ²⁵²⁵²⁵
Thrust: 201 Kg or 2010 N ²⁶²⁶²⁶
Stroke: 60 mm ²⁷²⁷²⁷
Lining: Aluminum brake shoes with an Asbestos free Liner ²⁸²⁸²⁸
Friction Coefficient ($\mu$): 42 ²⁹²⁹²⁹
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC ³⁰³⁰³⁰, drawing 4 Amps ($\pm$2%) ³¹³¹³¹with a Power consumption of 485 Watt ($\pm$2%)³²³²³².

SMG BRAKE 630-301-6

Model: SMG 630-301/06 STD ³⁷³⁷³⁷
Drum Diameter: 630 mm ³⁸³⁸³⁸
Shoe Width: 225 MM ³⁹³⁹³⁹
Braking Torque: 790 Kg-m or 7900 Nm ⁴⁰⁴⁰⁴⁰
Thruster Model: ELDY-301/06 ⁴¹⁴¹⁴¹
Thrust: 301 Kg or 3010 N ⁴²⁴²⁴²
Stroke: 60 mm ⁴³⁴³⁴³
Lining: Aluminum brake shoes with an Asbestos free Liner ⁴⁴⁴⁴⁴⁴
Friction Coefficient ($\mu$): 42 ⁴⁵⁴⁵⁴⁵
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC ⁴⁶⁴⁶⁴⁶, drawing 52 Amps ($\pm$2%) ⁴⁷⁴⁷⁴⁷with a Power consumption of 540 Watt ($\pm$2%)⁴⁸⁴⁸⁴⁸.

SMG BRAKE 710-121-6

Model: SMG 710-121/06 STD ⁴²
Drum Diameter: 710 mm ⁴³
Braking Torque: 380 Kg-m or 3800 Nm ⁴⁴
Thruster Model: ELDY-121/06 ⁴⁵
Thrust: 121 Kg or 1210 N ⁴⁶
Lining: Aluminum brake shoes with an Asbestos free Liner⁴⁷. The Friction Coefficient ($\mu$) is 0.42⁴⁸.
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC, with a Power consumption of 410 Watt (±2%)⁴⁹.

SMG BRAKE 710-201-6

Model: SMG 710-201/06 STD ⁵⁴
Drum Diameter: 710 mm ⁵⁵
Braking Torque: 630 Kg-m or 6300 Nm ⁵⁶

Thruster Model: ELDY-201/06 ⁵⁷
Thrust: 201 Kg or 2010 N ⁵⁸
Lining: Aluminum brake shoes with an Asbestos free Liner⁵⁹. The Friction Coefficient ($\mu$) is 0.42⁶⁰.
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC, with a Power consumption of 485 Watt ($\pm$2%)⁶¹.

SMG BRAKE 710-301-6

Model: SMG 710-301/06 STD ⁶⁶
Drum Diameter: 710 mm ⁶⁷
Braking Torque: 940 Kg-m or 9400 Nm ⁶⁸
Thruster Model: ELDY-301/06 ⁶⁹
Thrust: 301 Kg or 3010 N ⁷⁰
Lining: Aluminum brake shoes with an Asbestos free Liner⁷¹. The Friction Coefficient ($\mu$) is 0.42⁷².
Electrical: Operates on 415 V ± 10%, 50 Hz, 3Ph AC, with a Power consumption of 540 Watt⁷³.
