ST THRUSTERS
Electro-Hydraulic Thruster is a device which develops linear thrust (or force) required to operate the desired mechanism.
The Thrusters are widely used to actuate thruster shoe brakes, commonly used in material handling equipments. Thrusters are available in various models.
ST - 520
The ST-520-18-1 is a high-performance electro-hydraulic thruster designed for industrial shoe brakes. It delivers a thrust force of 180 kgf with a stroke length of 50 mm, ensuring fast and smooth braking action. Operating on 415V AC, 3-phase power, it provides reliable performance for continuous duty applications. Its compact design, robust construction, and maintenance-free sealed oil system make it ideal for EOT cranes, conveyors, and heavy material handling systems. Engineered for durability, it ensures consistent braking even in harsh industrial environments.

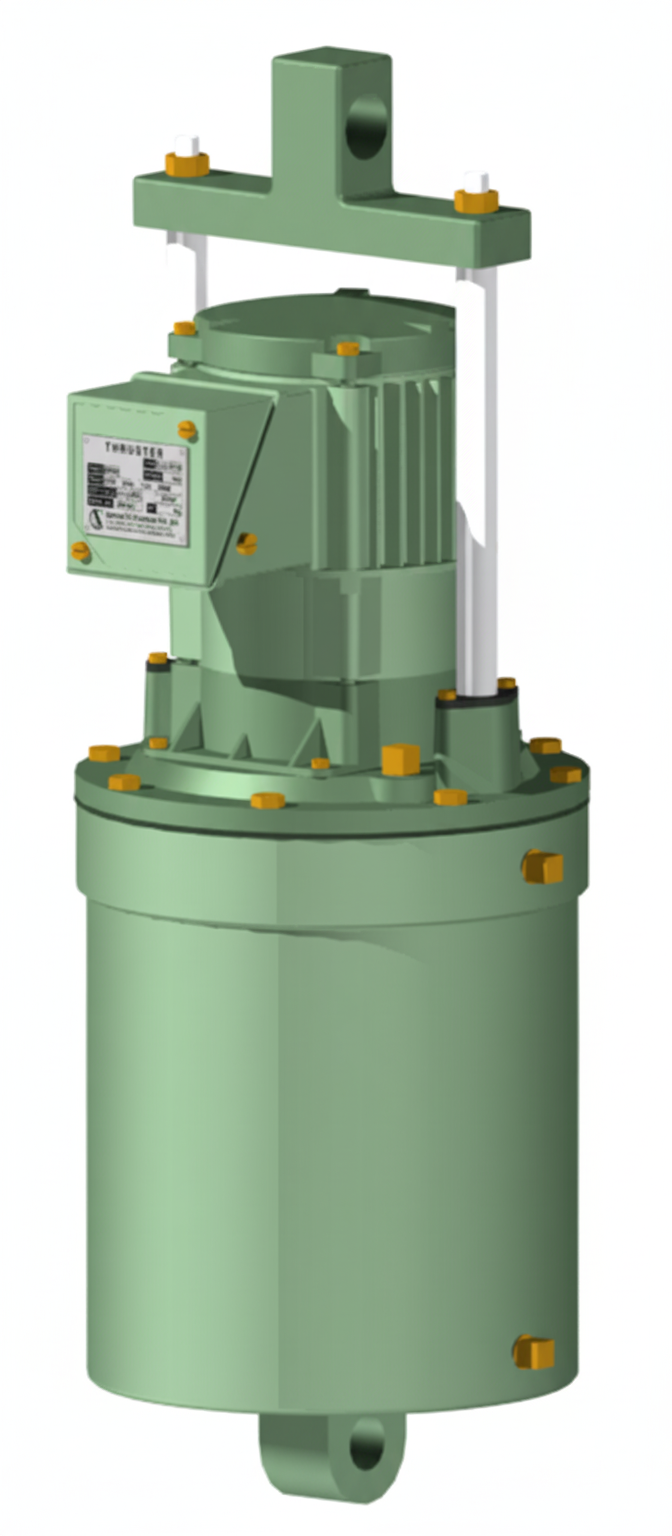

ST - 535
The ST-535-34 electro-hydraulic thruster delivers a robust 34 kg (333 N) linear thrust with a 51 mm stroke, powered by a 150W, 415V AC, 3-phase supply. Designed for EOT cranes, gantry cranes, overhead cranes, and hoists, it features a cast iron body and operates efficiently with 3 liters of transformer oil. With an IP-55 ingress protection and a maximum ambient temperature of 50°C, this thruster ensures reliable performance in demanding industrial environments.

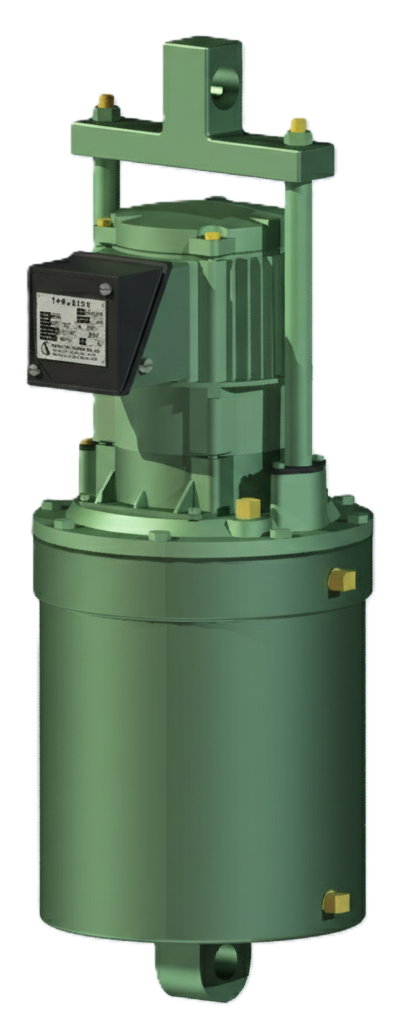

ST - 545
The ST-545-46 electro-hydraulic thruster delivers a robust 46 kg (451 N) linear thrust with a stroke length of 76 mm, powered by a 400/440V AC, 50Hz, 3-phase supply. Designed for demanding applications, it features a cast iron body and operates efficiently with 3 liters of transformer oil. With an IP-55 ingress protection and a maximum ambient temperature of 50°C, this thruster ensures reliable performance in harsh industrial environments. It is widely used in EOT cranes, gantry cranes, overhead cranes, and hoists.

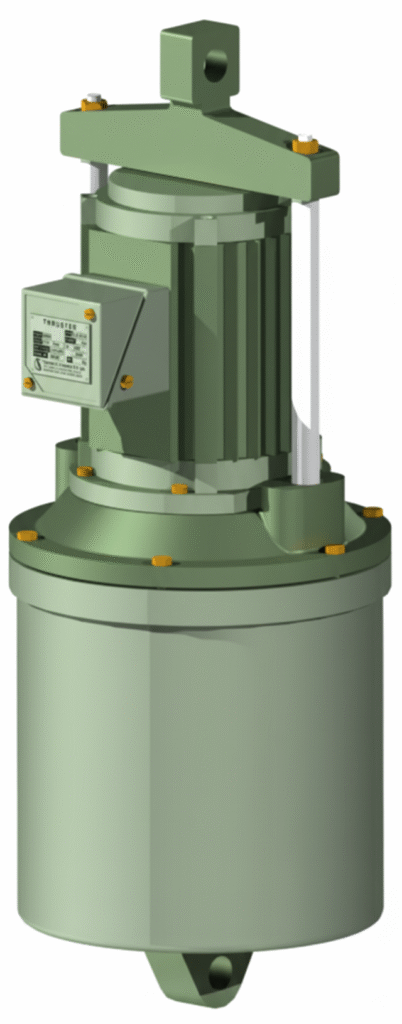

ST - 870
The ST-870-68 electro-hydraulic thruster delivers a robust 68 kg (667 N) linear thrust with a stroke length of 76 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 200W power consumption and requires 5 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 8110
The ST-8110 electro-hydraulic thruster delivers a robust 114 kg (1118 N) linear thrust with a 76 mm stroke, powered by a 415V AC, 3-phase supply. It operates efficiently with a 250W power consumption and requires 4.5 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for EOT cranes, gantry cranes, overhead cranes, and hoists.

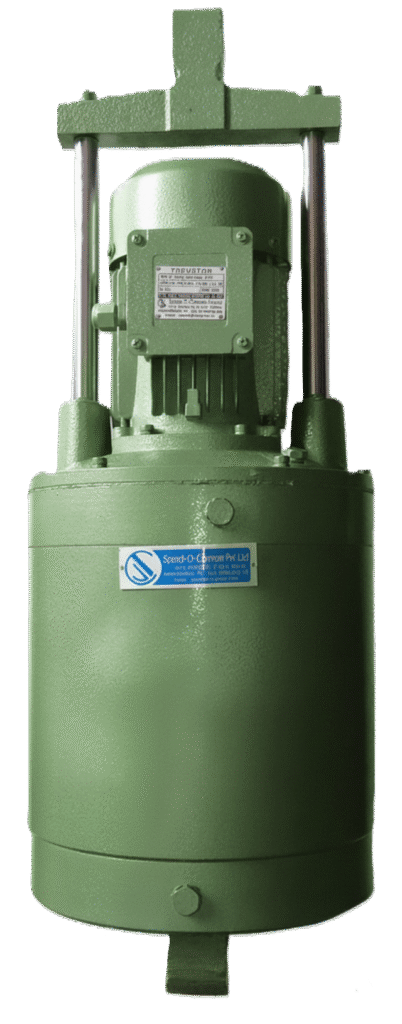

ST - 13200
The ST-13200 electro-hydraulic thruster delivers a robust 132 kg (1294 N) linear thrust with a stroke length of 254 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 400W power consumption and requires 10 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 13300
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 520
The ST-520-18-1 is a high-performance electro-hydraulic thruster designed for industrial shoe brakes. It delivers a thrust force of 180 kgf with a stroke length of 50 mm, ensuring fast and smooth braking action. Operating on 415V AC, 3-phase power, it provides reliable performance for continuous duty applications. Its compact design, robust construction, and maintenance-free sealed oil system make it ideal for EOT cranes, conveyors, and heavy material handling systems. Engineered for durability, it ensures consistent braking even in harsh industrial environments.
ST - 535
The ST-535-34 electro-hydraulic thruster delivers a robust 34 kg (333 N) linear thrust with a 51 mm stroke, powered by a 150W, 415V AC, 3-phase supply. Designed for EOT cranes, gantry cranes, overhead cranes, and hoists, it features a cast iron body and operates efficiently with 3 liters of transformer oil. With an IP-55 ingress protection and a maximum ambient temperature of 50°C, this thruster ensures reliable performance in demanding industrial environments.
ST - 545
The ST-545-46 electro-hydraulic thruster delivers a robust 46 kg (451 N) linear thrust with a stroke length of 76 mm, powered by a 400/440V AC, 50Hz, 3-phase supply. Designed for demanding applications, it features a cast iron body and operates efficiently with 3 liters of transformer oil. With an IP-55 ingress protection and a maximum ambient temperature of 50°C, this thruster ensures reliable performance in harsh industrial environments. It is widely used in EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 870
The ST-870-68 electro-hydraulic thruster delivers a robust 68 kg (667 N) linear thrust with a stroke length of 76 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 200W power consumption and requires 5 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 8110
The ST-8110 electro-hydraulic thruster delivers a robust 114 kg (1118 N) linear thrust with a 76 mm stroke, powered by a 415V AC, 3-phase supply. It operates efficiently with a 250W power consumption and requires 4.5 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 13200
The ST-13200 electro-hydraulic thruster delivers a robust 132 kg (1294 N) linear thrust with a stroke length of 254 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 400W power consumption and requires 10 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
ST - 13300
The ST-13300 electro-hydraulic thruster delivers a robust 295 kg (2893 N) linear thrust with a stroke length of 127 mm, powered by a 415V AC, 3-phase supply. It operates efficiently with a 580W power consumption and requires 9 liters of transformer oil. Designed for demanding applications, it features a cast iron body and offers an IP-55 ingress protection rating, ensuring reliable performance in harsh industrial environments. With a maximum ambient temperature of 50°C, this thruster is ideal for heavy-duty EOT cranes, gantry cranes, overhead cranes, and hoists.
